01 - Cover


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner

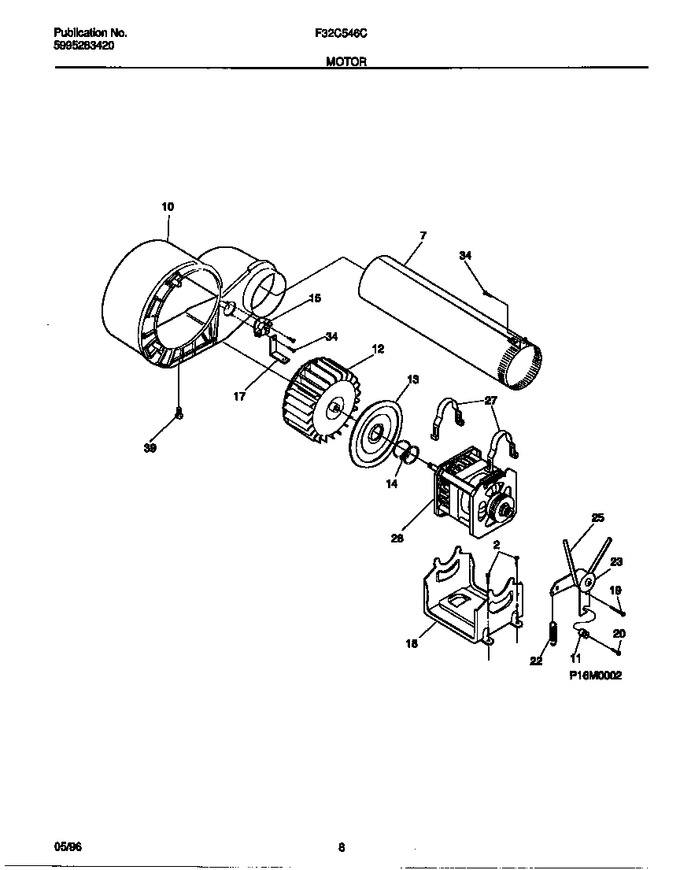

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
7	5303269973		Tube-exhaust		Appelez-nous	-
10	5303270858		Housing, Fan		Appelez-nous	-
11	5303281076		Spacer-idler Arm		Appelez-nous	-
12	5303281079		Wheel, Blower				$ 219.03
13	5303307784		Cover-fan		Appelez-nous	-
14	5303281083		Spring-fan Cover		Appelez-nous	-
15	131298400		Thermostat-control				$ 149.63
17	5303269972		Bracket, Grounding		Appelez-nous	-
18	131367101		Cradle, Motor		Appelez-nous	-
19	131205300		Screw, 10-16 X .75			Immediately	$ 12.10
20	131017900		Screw-spacer, Hex Head, 1/4-20t X 1.25, Thread Cutting				$ 14.46
22	5303281085		Spring, Idler				$ 13.01
23	131863007		Arm-idler, W/pulley   (Replaces: 131580400)			Immediately	$ 43.05
25	134503600		Belt-dryer   (Replaces: 5303283471)			Immediately	$ 18.79
27	5303212834		Clamp, Motor				$ 3.78
28	131572300		Motor-main		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
39	131205100		Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
