Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 08011338 Screw (4) Appelez-nous -
2 131332700 Hinge (2) Appelez-nous -
3 5303015671 Screw (2) Appelez-nous -
4 131205300 Screw In-Stock Immediately $ 12.10

5 5303281129 Service Cord Appelez-nous -
6 3281130 Cover-terminal Block Appelez-nous -
7 134154100 Screw (2)   (Replaces: 131301100) Special Order $ 13.46

9 131243700 Screw (2) Special Order $ 3.36

10 5303281018 Cover Plate Appelez-nous -
12 131168200 Screw (4) In-Stock Immediately $ 14.18

13 131825900 Bearing (parts Contained In Rear Bearing Kit.)   (Replaces: 5303281008) In-Stock Immediately $ 10.97

14 131724301 Bracket-bearing Support (parts Contained In Rear Bearing   (Replaces: 5303281023) In-Stock Immediately $ 25.66

15 131205400 Screw (2) (parts Contained In Rear Bearing Kit) Special Order $ 12.76

16 5303281119 Heater Housing & Seal Assembly Appelez-nous -
17 131243700 Screw (2) Special Order $ 3.36

18 5308015399 Thermostat - Safety Special Order $ 242.18

19 131777700 Shaft (parts Contained In Rear Bearing Kit)   (Replaces: 131378400) In-Stock Immediately $ 71.87

21 3201199 Drum Special Order $ 246.86

22 137552900 Vane   (Replaces: 5303201200) Special Order $ 54.95

23 131205200 Screw (6) Appelez-nous -
25 131378200 Screw (3) (parts Contained In Rear Bearing Kit.) Appelez-nous -
26 3281123 Heat Duct Assembly Appelez-nous -
27 131243700 Screw Special Order $ 3.36

28 3201202 Grommet (4) Special Order $ 22.47

29 5303281032 Foot Bolt (4) Appelez-nous -
30 131243700 Screw (4) Special Order $ 3.36

31 5303281020 Nut-flat (parts Contained In Rear Bearing Kit.) Special Order $ 17.01

32 5303281019 Ball (parts Contained In Rear Bearing Kit.) Special Order $ 16.30

35 131346400 Pin, Locating Special Order $ 12.44

36 131353500 Clip-cabinet Front Bottom Appelez-nous -
*07760 131059700 Drying-rack Special Order $ 50.82

*07761 5303281153 Rear Bearing Kit (parts Contained In Rear Bearing Kit.) In-Stock Immediately $ 46.64


    View Diagram in Separate Window     Print Icon   Print Part List

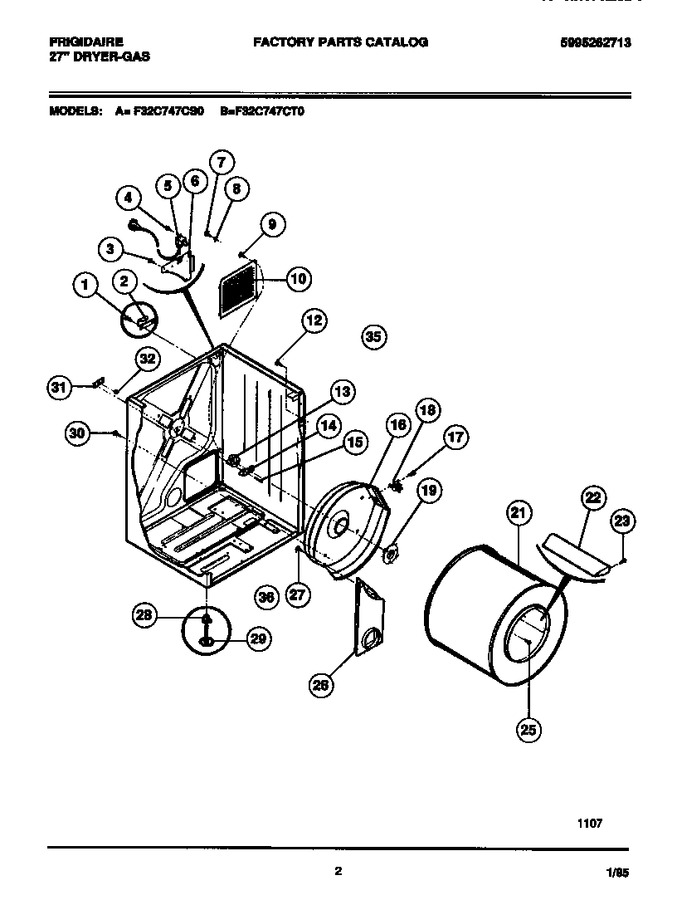

Diagram for F32C747CS0
