Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 131141701 Backsheet Appelez-nous -
3 131205100 Screw (4) In-Stock Immediately $ 14.18

4 131111300 Timer Appelez-nous -
5 131048000 Switch, Start Appelez-nous -
7 131141302 Pushbutton, Almond Appelez-nous -
8 131122702 End Cap-rh-almond Appelez-nous -
9 3205821 Spring Catch In-Stock Immediately $ 35.44

11 218359202 Screw (2)   (Replaces: 5303283289) Special Order $ 10.63

12 131141102 Knob-rotary-almond Appelez-nous -
13 131048300 Buzzer Appelez-nous -
15 131297306 Bracket-controls Appelez-nous -
17 131122712 End Cap Lh-almond Appelez-nous -
18 5303289526 Screw Appelez-nous -
20 131197000 Clip Special Order $ 13.62

21 131243800 Screw Special Order $ 10.46

23 131141002 Knob, Timer, Almond Appelez-nous -
25 131404100 Panel, Control, Almond Appelez-nous -
26 131370100 Harness Appelez-nous -
28 131130304 Panel, Top, Almond Appelez-nous -
30 131122602 End Cap Cover-rh-almond Appelez-nous -
31 131122612 End Cap-cover-lh-almond Appelez-nous -
32 131089800 Bracket-control Board (2) Special Order $ 50.83

33 131167400 Control Board Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

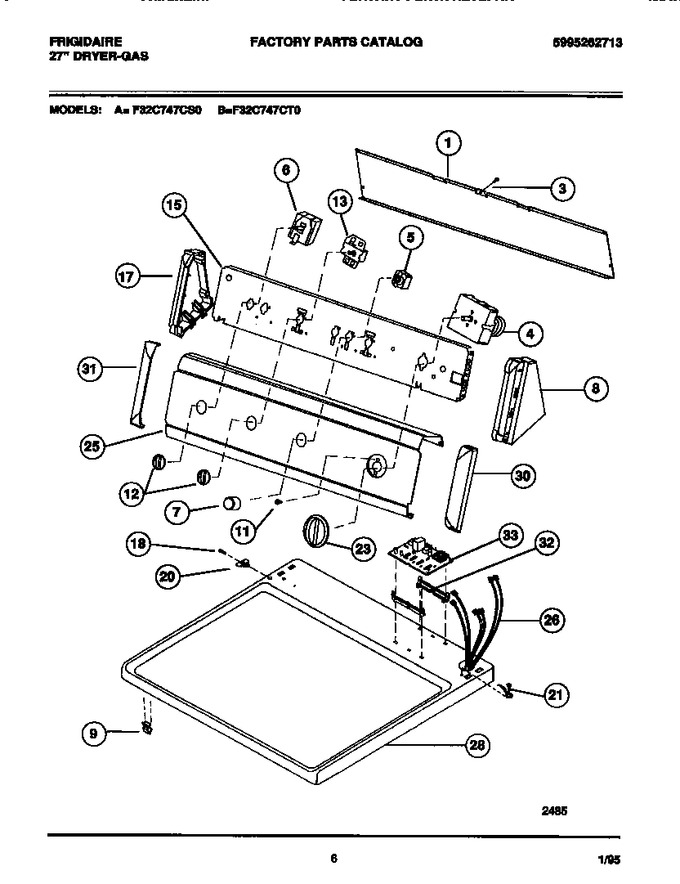

Diagram for F32C747CT0
