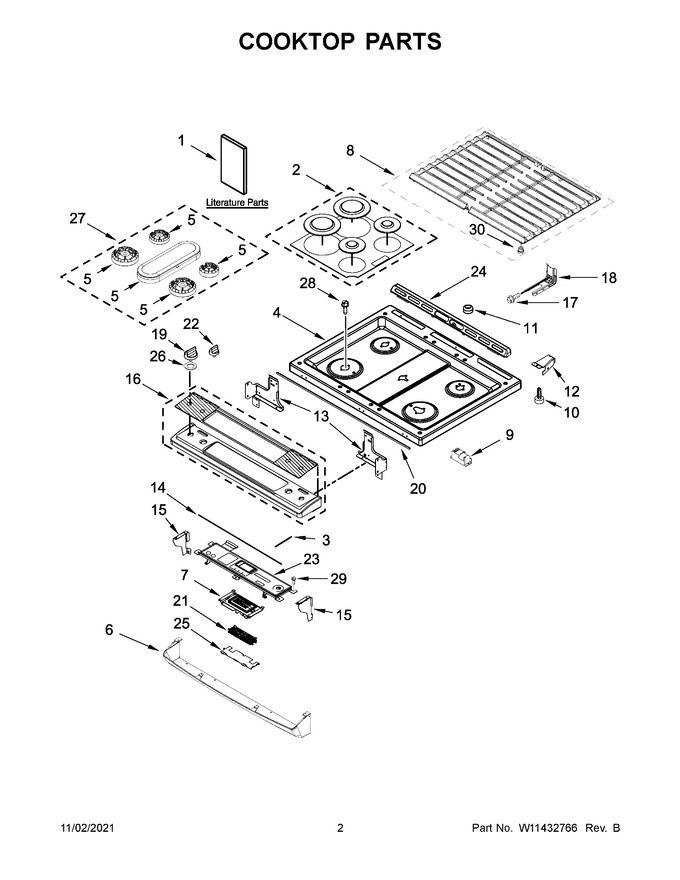

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426594		Owners Manual		Appelez-nous	-
2	W11834859		Kit, Burner Cap (black (set Of 4))   (Replaces: W11352138)		Appelez-nous	-
3	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 19.65
4	W11450806		Cooktop (black)   (Replaces: W11341033)				$ 351.52
5	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 70.62
6	W11218703		Panel, Lower Console (black)   (Replaces: W10570527)			Immediately	$ 139.09
7	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 452.26
8	W11449027		Kit, Grate (black)   (Replaces: W11353423)				$ 312.15
9	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 161.15
10	8016P02260		Glide, Main Top		Appelez-nous	-
11	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 12.78
12	W10162253		Brace, Corner (left)				$ 63.54
13	W10289170		Support, Cooktop (left)				$ 25.76
14	W10802457		Gasket, Console   (Replaces: W10689101)				$ 18.28
15	W10547960		Bracket, Console (left)				$ 19.90
16	W10680371		Assembly, Console (stainless)				$ 436.57
17	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
18	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 20.73
19	W11049637		Knob (stainless)   (Replaces: W10876615)				$ 71.99
20	W10802441		Gasket, Console/ Cooktop   (Replaces: W10612719)			Immediately	$ 20.46
21	W11050556		Control, Electronic   (Replaces: W10759301)			Immediately	$ 417.14
22	W11049638		Knob, Mini (stainless)   (Replaces: W10876616)				$ 71.81
23	W11049250		Assembly, Overlay (stainless)   (Replaces: W10888920)			Immediately	$ 282.45
24	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 175.55
25	W10558372		Bracket, Control				$ 21.51
26	W11131701		Bushing (black)   (Replaces: W10739036)				$ 19.94
27	W11575584		Burner Kit   (Replaces: W11368533)				$ 153.83
28	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
29	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 12.65
30	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 11.30
12A	W10162252		Brace, Corner (right)				$ 67.37
13A	W10289169		Support, Cooktop (right)				$ 25.76
15A	W10547961		Bracket, Console (right)				$ 19.90
15B	W10598048		Bracket, Console (center)				$ 22.05
1A	W11393914		Tech Sheet		Appelez-nous	-
1B	W11427472		Quick Start Guide		Appelez-nous	-
5A	W11435657		Spreader, Flame (left Rear)   (Replaces: W11352021)				$ 72.37
5B	W11435659		Spreader, Flame (right Rear)   (Replaces: W11352020)				$ 72.73
5C	W11435660		Spreader, Flame (center)   (Replaces: W11367086)			Immediately	$ 88.70
9A	W10860916		Module, Spark (0+2)   (Replaces: W10457998)			Immediately	$ 256.13
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 30.72
NI	W10911849		Harness, Main				$ 201.01
NI	W10580229		Wire, Ground				$ 32.76
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 48.02
NI	W10580265		Harness, Bake/warm Drawer			Immediately	$ 75.46
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 192.83
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
