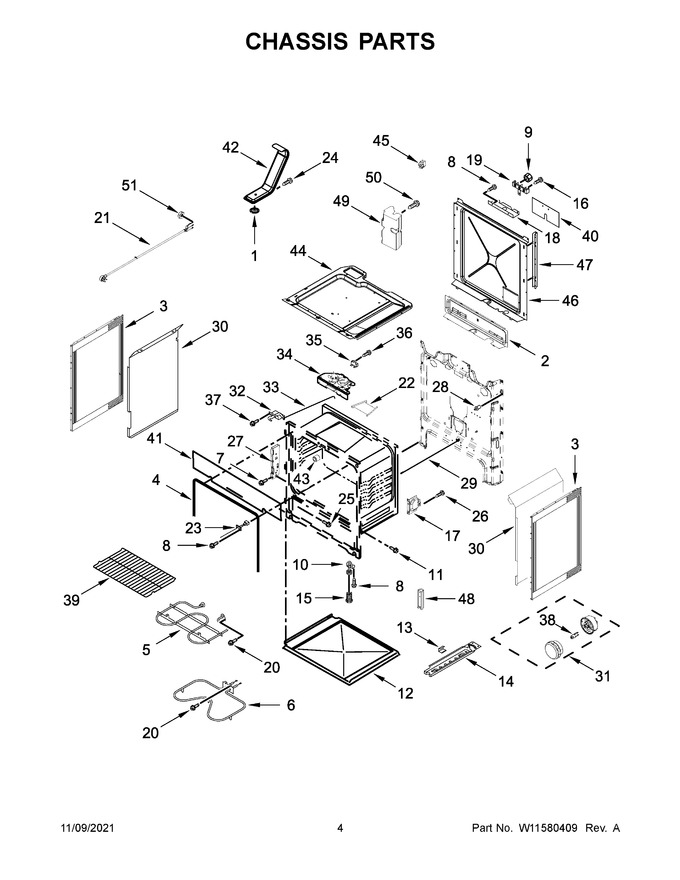

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11268772 | Screen, Vent (Replaces: W11092984) |
|
$ 187.34 | |||||
| 2 | W10162248 | Cover, Wire |
|
$ 127.02 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 148.35 | ||||
| 4 | W11542153 | Seal, Door (Replaces: W11491751) |
|
Immediately | $ 45.18 | ||||
| 5 | WPW10583047 | Element, Broil (Replaces: W10583047) |
|
Immediately | $ 136.38 | ||||
| 6 | W11447783 | Bake, Element (Replaces: W10535148) |
|
Immediately | $ 75.92 | ||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 9 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 10 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 11 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 12 | W10312471 | Tray, Insulation |
|
$ 61.79 | |||||
| 13 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 14 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 53.71 | |||||
| 15 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 16 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 17 | W10404688 | Bracket, Oven Support (Replaces: W10355173) |
|
$ 15.17 | |||||
| 18 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 19 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 27.12 | ||||
| 20 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 21 | W11226497 | Cord, Power (Replaces: W10624591) |
|
Immediately | $ 65.69 | ||||
| 22 | W10853401 | Baffle, Upper Chassis |
|
- | |||||
| 23 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 126.64 | ||||
| 24 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 25 | W11684512 | Screw (Replaces: 3400080) |
|
$ 12.69 | |||||
| 26 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 27 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 28 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 130.00 | ||||
| 29 | W11370462 | Rod, Door Switch |
|
$ 57.97 | |||||
| 30 | W11379353 | Retainer, Insulation (left) |
|
- | |||||
| 31 | W11594170 | Light Assembly (Replaces: W11430367) |
|
Immediately | $ 32.36 | ||||
| 32 | WP9761013 | Front Door Latch Assembly (Replaces: 9761013) |
|
$ 219.74 | |||||
| 33 | W10078370 | Rod, Push Latch |
|
$ 81.63 | |||||
| 34 | WPW10107840 | Assembly, Latch (rear) (Replaces: W10107840) |
|
Immediately | $ 100.71 | ||||
| 35 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 36 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 37 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 38 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.94 | ||||
| 39 | W11520287 | Rack, Oven (Replaces: W11173792) |
|
Immediately | $ 42.16 | ||||
| 40 | W10655441 | Shield, Power Cord |
|
Immediately | $ 123.74 | ||||
| 41 | W11688573 | Chassis, Upper Insulation (Replaces: W10848443) |
|
$ 29.18 | |||||
| 42 | W11122085 | Assembly, Flue |
|
$ 101.47 | |||||
| 43 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 48.05 | ||||
| 44 | W10814301 | Chassis, Support Upper |
|
- | |||||
| 45 | W11769891 | Clip-panel, Ratcheting (Replaces: W10866583) |
|
$ 9.11 | |||||
| 46 | W11379354 | Cover, Back |
|
Immediately | $ 66.68 | ||||
| 47 | W10162241 | Channel, Rear |
|
$ 32.19 | |||||
| 48 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 16.54 | ||||
| 49 | W11217187 | Counterweight (Replaces: W10914589) |
|
$ 29.10 | |||||
| 50 | W11135756 | Screw (Replaces: W11034869) |
|
$ 12.63 | |||||
| 51 | 7103P02760 | Nut |
|
- | |||||
| 14A | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 53.71 | |||||
| 30A | W11379943 | Retainer, Insulation (right) |
|
- | |||||
| NI | W11688416 | Insulation, Back (Replaces: W10815385) |
|
- | |||||
| NI | W11684775 | Insulation, Wrap (Replaces: W10830993) |
|
- | |||||
| NI | NP | Following Parts Not Illustrated |
|
- |
