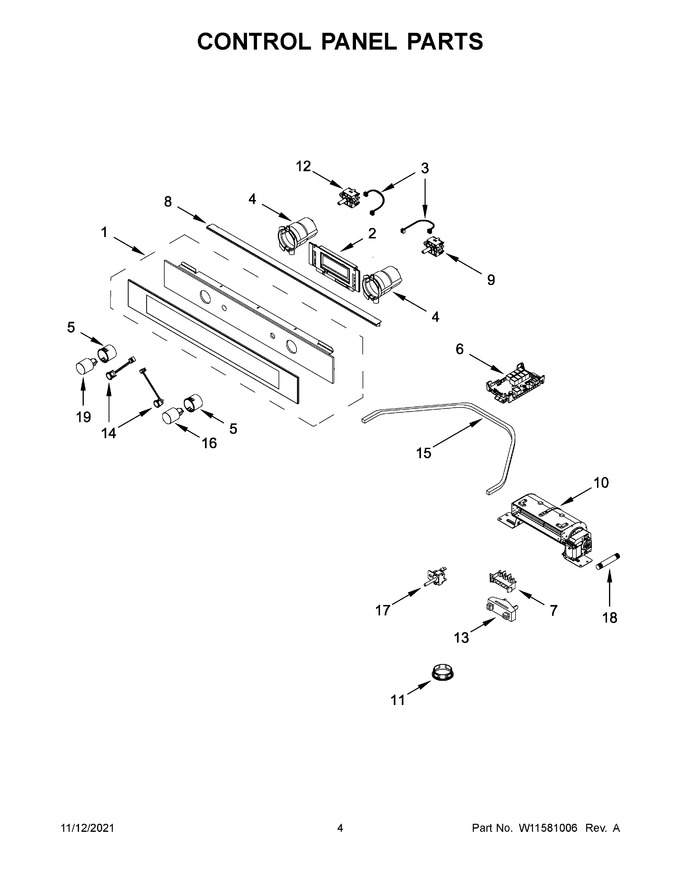

03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10519058 | Panel, Control Glass And Frame |
|
Immediately | $ 251.29 | ||||
| 2 | W10836476 | Board, Display G2 Evo Analogue |
|
Immediately | $ 492.84 | ||||
| 3 | W10519030 | Harness, Display Selector Switch |
|
$ 7.12 | |||||
| 4 | W10519812 | Support, Push Button |
|
Immediately | $ 5.70 | ||||
| 5 | W10519068 | Ring, Push Turn Knob |
|
$ 6.13 | |||||
| 6 | W11582710 | Board, Power Antares (Replaces: W11581947) |
|
Immediately | $ 284.40 | ||||
| 7 | W10518946 | Block, Terminal |
|
$ 59.37 | |||||
| 8 | W11236834 | Trim, Vent (Replaces: W10914742) |
|
$ 84.52 | |||||
| 9 | W10519035 | Switch, Selector +/- Incremental |
|
$ 9.18 | |||||
| 10 | W10517958 | Blower, Cooling Fan |
|
$ 85.78 | |||||
| 11 | W10518942 | Grommet, Cable |
|
- | |||||
| 12 | W10519034 | Switch, Oven 11 Position |
|
$ 9.02 | |||||
| 13 | W10516534 | Clamp, Cable |
|
- | |||||
| 14 | W10519071 | Button, Push |
|
Immediately | $ 13.49 | ||||
| 15 | W10519009 | Gasket, Blower Motor |
|
- | |||||
| 16 | W11268041 | Knob, Push Button (Replaces: W10567301) |
|
Immediately | $ 71.57 | ||||
| 17 | W11791034 | Thermostat (Replaces: W10532969) |
|
$ 28.04 | |||||
| 18 | W10518970 | Fuse, 315ma |
|
$ 4.80 | |||||
| 19 | W10519074 | Knob, Oven |
|
$ 36.66 |
