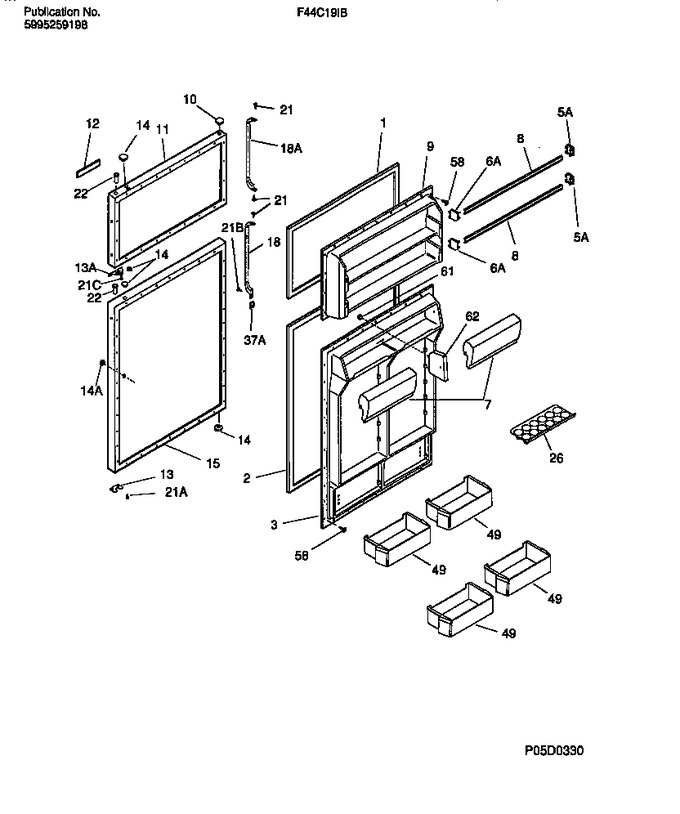

SELECT A DIAGRAM

02 - Door Section


03 - Cabinet W/ Fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


06 - Ice Maker Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608912		Gasket-frzr Door,white,magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303276800		Panel-inner Door, Refr		Appelez-nous	-
7	5303284478		Door-dairy				$ 179.92
8	215474020		Rack-door		Appelez-nous	-
9	5303276748		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917344		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215008610		Nameplate		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917342		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	215482137		Handle-door, 17.37``, White		Appelez-nous	-
21	5303272566		Screw-handle Mtg, Oval Head, 10-24(d) X 5/8, White, Cro		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
49	215441502		Bin-door, Gallon				$ 176.87
58	5308002748		Screw		Appelez-nous	-
61	5308017047		Nut, Self-threading, 1/8		Appelez-nous	-
62	5303275673		Divider-dairy Compt		Appelez-nous	-
*87960	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249001		Door Stop, White, Frzr				$ 82.06
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
15A	215894100		Cross Brace-door (non-illustrated)		Appelez-nous	-
18A	215482135		Handle-door, 17.02``, White		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2, Frzr Dr Stop   (Replaces: 218252200)			Immediately	$ 14.18
37A	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-
5A	5303323480		Support-door Rack, Rh   (Replaces: 5303017377)				$ 14.18
6A	5303323481		Support-door Rack, Lh   (Replaces: 5303017380)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
