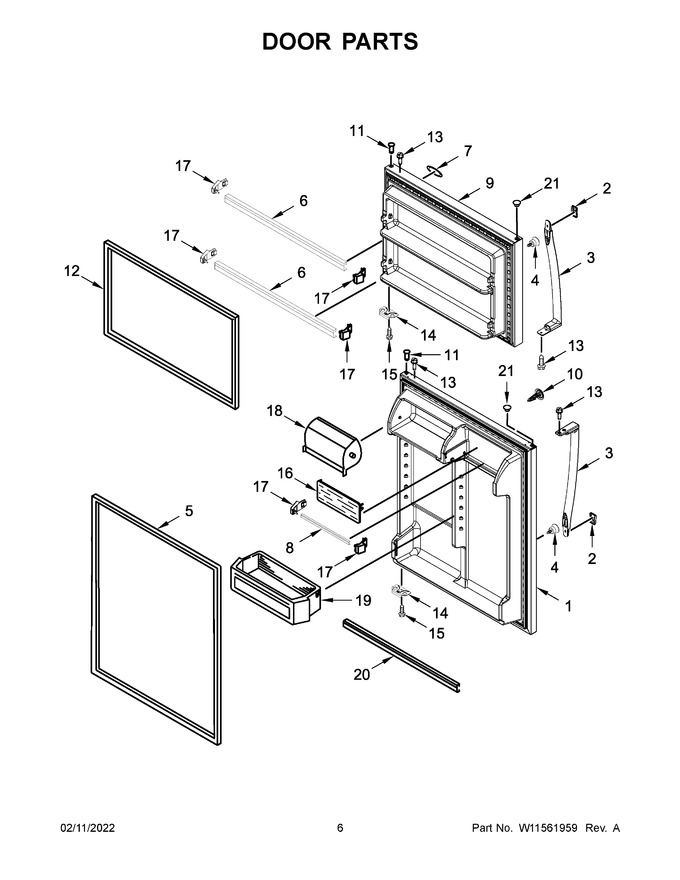

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023679		Refrigerator Door (includes Door Gasket) (white)   (Replaces: W10599404)				$ 650.01
2	WPW10672338		Handle, Trim (white)   (Replaces: W10672338)			Immediately	$ 25.64
3	WPW10672333		Handle, Door (white)   (Replaces: W10672333)			Immediately	$ 170.17
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.47
5	W10860480		Gasket, Door (white)   (Replaces: W11406596)				$ 265.49
6	W11596065		Trim, Door   (Replaces: W11230196)				$ 84.22
7	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
8	W11678258		Trim, Door   (Replaces: W10720455)				$ 75.55
9	W11023679		Freezer Door (includes Door Gasket) (white)   (Replaces: W10599407)				$ 650.01
10	W10830984		Plug, Hole (white)   (Replaces: W10663736)				$ 7.18
11	WP2314293		Thimble   (Replaces: 2314293)				$ 6.47
12	W10741118		Gasket, Door (white)   (Replaces: W11406593)				$ 284.60
13	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
16	WP2188236		Door, Flip Up   (Replaces: 2188236)				$ 55.18
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 11.36
18	W11617783		Door, Compartment   (Replaces: W10385897)				$ 65.39
19	W10803530		Bin, Door   (Replaces: W10582649)				$ 60.21
20	W11606660		Trim, Door   (Replaces: W11230195)			Immediately	$ 27.95
21	WP2212648		Plug, Hinge (white)   (Replaces: 2212648)				$ 7.02
10A	W10830983		Plug, Hole (black)   (Replaces: W10663737)				$ 16.75
10B	W10830981		Plug, Hole (biscuit)   (Replaces: W10663738)		Appelez-nous	-
10C	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 16.75
12A	2177310		Gasket, Door (black)   (Replaces: W11406601)				$ 287.41
12B	2159060		Gasket, Door (beige)   (Replaces: W11406605)				$ 288.01
12C	W10249196		Gasket, Door (grey)   (Replaces: W11406598)			Immediately	$ 239.23
1A	W11023687		Refrigerator Door (includes Door Gasket) (black)   (Replaces: W10599396)				$ 690.38
1B	W11023688		Refrigerator Door (includes Door Gasket) (biscuit)   (Replaces: W10679333)		Appelez-nous	-
1C	LW10642551		Refrigerator Door (includes Door Gasket) (stainless)   (Replaces: W10642551)		Appelez-nous	-
21A	WP2212651		Plug, Hinge (black)   (Replaces: 2212651)				$ 20.75
21B	WP2212649		Plug, Hinge (biscuit)   (Replaces: 2212649)				$ 6.85
21C	WP2254517		Plug, Hinge (grey)   (Replaces: 2254517)			Immediately	$ 20.86
2A	W10838316		Handle, Trim (black)   (Replaces: W10672339)				$ 26.64
2B	W10672341		Handle, Trim (biscuit)		Appelez-nous	-
2C	W11519504		Handle, Trim (gray)   (Replaces: W11374428)			Immediately	$ 43.23
3A	WPW10672334		Handle, Door (black)   (Replaces: W10672334)				$ 194.86
3B	W10859918		Handle, Door (biscuit)   (Replaces: W10672336)		Appelez-nous	-
3C	W10806512		Handle, Door (stainless)   (Replaces: W10653470)			Immediately	$ 180.94
5A	2177311		Gasket, Door (black)   (Replaces: W11406604)				$ 283.67
5B	2159061		Gasket, Door (beige)   (Replaces: W11406608)			Immediately	$ 165.30
5C	W10249195		Gasket, Door (grey)   (Replaces: W11406600)				$ 287.83
9A	W11023687		Freezer Door (includes Door Gasket) (black)   (Replaces: W10599399)				$ 690.38
9B	W11023688		Freezer Door (includes Door Gasket) (biscuit)   (Replaces: W10679336)		Appelez-nous	-
9C	LW10642554		Freezer Door (includes Door Gasket) (stainless)   (Replaces: W10642554)		Appelez-nous	-
NI	W11416038		Door Reversal Kit, White Model   (Replaces: W10662124)				$ 71.35
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11415957		Door Reversal Kit, Black Model   (Replaces: W10676239)				$ 68.95
NI	W10691128		Door Reversal Kit, Biscuit Model		Appelez-nous	-
NI	W10676240		Door Reversal Kit Stainless Model				$ 96.46

    View Diagram in Separate Window       Print Part List
