SELECT A DIAGRAM

01 - Cover

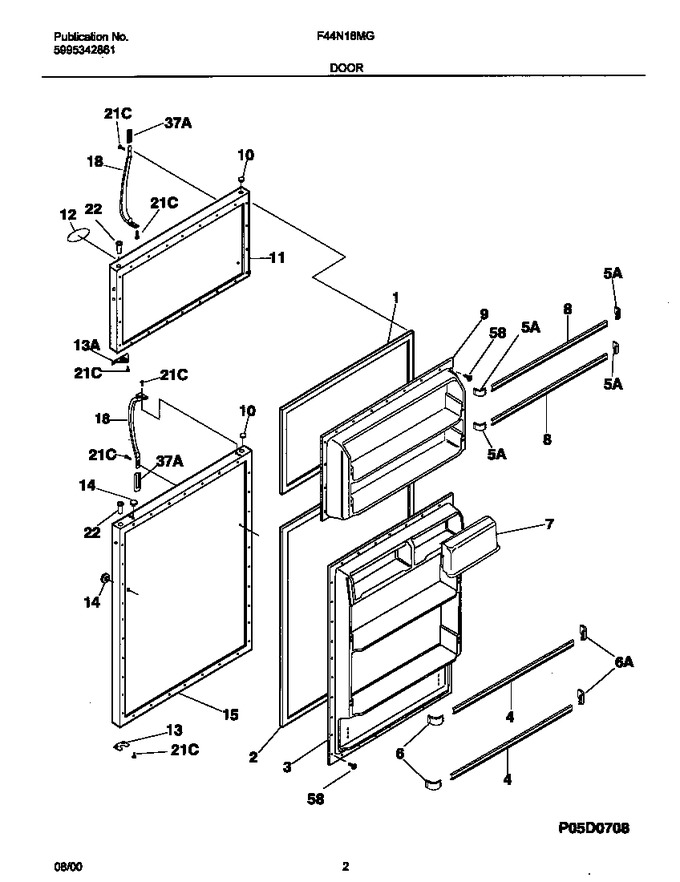

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic   (Replaces: 218730605)			Immediately	$ 188.19
3	218360001		Panel-inner Door, Refr				$ 453.98
4	215516220		Rack-door,20.81`` X 2.04``   (Replaces: 218763639)				$ 54.58
5	218758602		Support-door Rack,rh/lh			Immediately	$ 23.39
6	218809801		Support-door Rack, Rh		Appelez-nous	-
6	218809701		Support-door Rack, Lh		Appelez-nous	-
7	218287908		Door-dairy,10.71`` Wide ,clear ,no Graphics				$ 61.01
8	218763638		Rack-door,22.36`` X 2.04``		Appelez-nous	-
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917805		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	218425008		Nameplate Assy,white		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	5303917806		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218668001		Handle-door, White			Immediately	$ 66.16
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	215870629		Trim-handle,2.47`` ,white ,w/satin Al Band				$ 55.99
37	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*16761	215008616		Label-nameplate,white ,crown		Appelez-nous	-
*16762	215518000		Magnet-nameplate		Appelez-nous	-
*16764	218364001		Frame-nameplate, White		Appelez-nous	-
*16765	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
