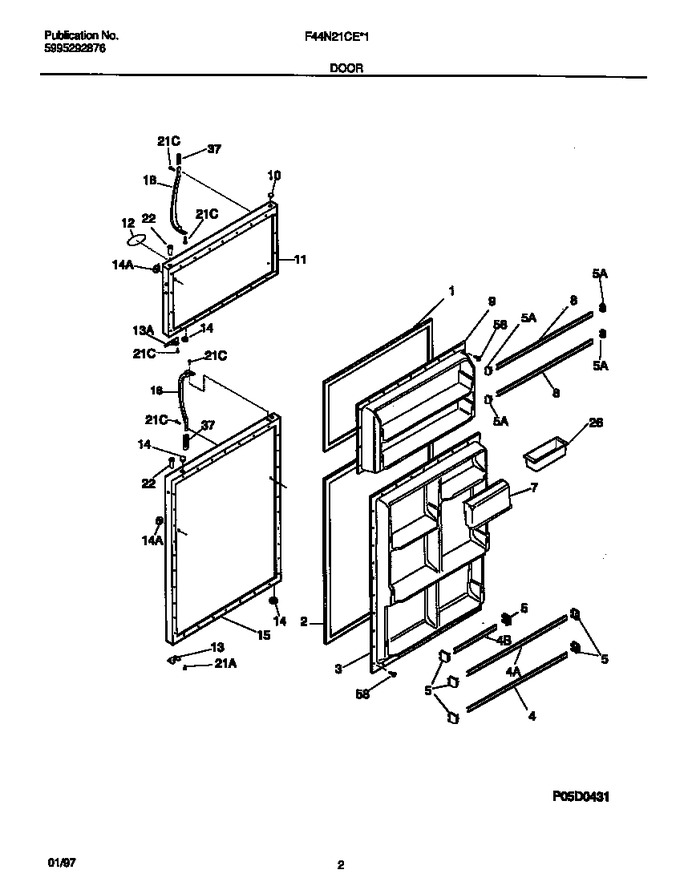

02 - Door


03 - Cabinet


05 - Shelves/controls


06 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	218763616		Rack-door,22.51`` X 2.04``		Appelez-nous	-
4	215516220		Rack-door, 9.24`` X 2.04``   (Replaces: 218763615)				$ 54.58
4	215516220		Rack-door, 23.09`` X 2.04``   (Replaces: 218763617)				$ 54.58
5	218758701		Support-door Rack, Rh/lh		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303310094		Door-dairy		Appelez-nous	-
8	215516220		Rack-door,23.47`` X 2.04`` ,(2)   (Replaces: 218763618)				$ 54.58
9	215530301		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917810		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	215008616		Label-nameplate, White, Crown (not Illustrated)		Appelez-nous	-
12	218364001		Frame-nameplate, White		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
14	240494001		Plug-button, White, Handle Mtg, Refr Door Front   (Replaces: 215352201)			Immediately	$ 18.20
15	5303917812		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218668001		Handle-door, White			Immediately	$ 66.16
21	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw, No. 8 Oval Head, 10-32ca X 0.625, Cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
26	3204522		Container-egg				$ 98.33
37	215867058		Trim-handle, 4.97``, White, W/band & Lock				$ 69.41
37	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
*95680	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
14A	218074001		Plug-button, White, Refr Door Front, Lower (not Illustrated)				$ 13.76
14B	218074002		Plug-button, Almond, Refr Door Front, Lower (not Illustrated)		Appelez-nous	-
