SELECT A DIAGRAM

02 - Door Section


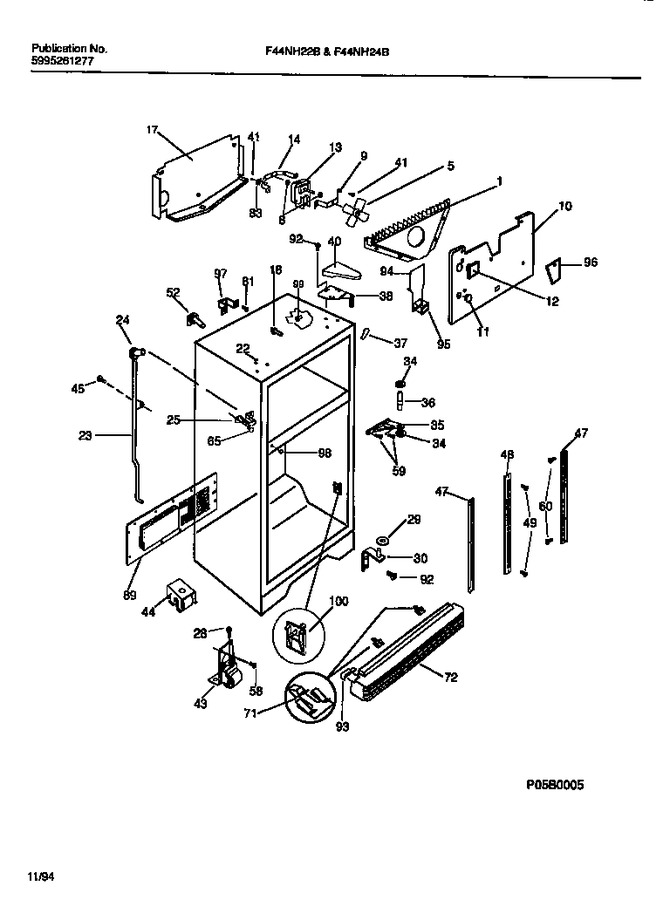

05 - Cabinet W/ Fan Assembly


06 - Shelves, Controls, Divider, Mullion


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
1	5303289487		Condenser		Appelez-nous	-
2	5303289029		Clip-cond Mtg. (4)		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 5308000027)			Immediately	$ 31.67
5	215458301		Harness-wiring,control/divider		Appelez-nous	-
5	5303292398		Fan Blade				$ 50.35
6	215501601		Harness-wiring, Machine Compt		Appelez-nous	-
7	215459201		Cord-electric Power				$ 66.47
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
8	5303289033		Cover-wiring		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5303294249		Cover, Evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303292393		Plug-decorative,icemaker Holes		Appelez-nous	-
13	215474201		Washer, ``slinger``, Nylon, Evap Fan Shaft (non-illustrat			Immediately	$ 18.43
13	215464100		Motor-evap Fan		Appelez-nous	-
14	5303292671		Heater-defrost		Appelez-nous	-
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	215379602		Evaporator, W/heat Exchangr		Appelez-nous	-
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5303292440		Trough-drain		Appelez-nous	-
17	5303292457		Insulator-evap, Plastic		Appelez-nous	-
18	5303292407		Insulation Block, Rh		Appelez-nous	-
18	215245000		Support - Evap Cover, (2)				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
20	5303292406		Insulation Block,lh		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
22	5303289030		Base-compressor Mtg,(drain Pan)				$ 213.57
22	215134501		Plug-button,white,upr Hinge Holes		Appelez-nous	-
23	215175000		Grommet-compr Mtg, (4)		Appelez-nous	-
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215014200		Clip-compressor Mtg		Appelez-nous	-
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215003200		Washer, .40x.63x .16,nylon				$ 54.86
29	5303917193		Compressor Only, W/o Electricals		Appelez-nous	-
30	5303289290		Tapping Plate,lh (non-illustrated)		Appelez-nous	-
30	5303289291		Tapping Plate, Rh		Appelez-nous	-
30	216008900		Starter-ptc		Appelez-nous	-
30	218150800		Bracket-lower Hinge, W/ Hinge Pin		Appelez-nous	-
31	5303299560		Overload		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
34	215095400		Washer-ctr Hinge Pin				$ 6.35
35	215002601		Bracket-ctr Hinge, White		Appelez-nous	-
36	215095900		Pin-center Hinge				$ 19.58
37	5303202336		Trim-cabinet Corner, White		Appelez-nous	-
38	218158000		Bracket-upper Hinge		Appelez-nous	-
40	5303288945		Cover-upper Hinge, White		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
43	5303289059		Roller Assy,front,(2)		Appelez-nous	-
43	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
43	5308017044		Scrw, Rllr Mtg, Spcl Ind Hex Hd, 5/16, 18(23) X 7/8 (no				$ 6.34
43	215174700		Clamp, Service Cord, Strain Relief		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
44	215163900		Roller Assy, Rear,(2)		Appelez-nous	-
45	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
45	5300141713		Screw-clamp Mtg, Hex Washer Head, 8-32 X 5/8, Special		Appelez-nous	-
47	5303292394		Channel-shelf Mtg, Side, Refr, (2)		Appelez-nous	-
48	5303292395		Channel-shelf Mtg, Center, Refr				$ 157.34
49	215507300		Screw, Hex Head, 8(ab) X 1-1/2		Appelez-nous	-
52	215454600		Tube-water Inlet				$ 81.11
52	215058000		Plug-wtr Inlet Tube (non-illustrated)				$ 2.73
54	5303289027		Rail-cabinet Base,rear		Appelez-nous	-
55	5304464438		Capacitor, Run (non-illustrated)   (Replaces: 216236200)			Immediately	$ 35.38
56	215014100		Pin-compressor Mtg,(4)		Appelez-nous	-
57	215073800		Clip-wiring Harness		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
58	215004600		Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2)		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
59	5303289031		Shroud-cond Fan Mtr		Appelez-nous	-
59	215226700		Seal-foam, Cond Fan Shroud (non-illustrated)		Appelez-nous	-
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
60	215501800		Motor-condenser Fan		Appelez-nous	-
61	5303289032		Blade-cond Fan		Appelez-nous	-
61	215223700		Grommet-silencer (non-illustrated)		Appelez-nous	-
61	215004700		Nut, Speed (non-illustrated)				$ 3.78
65	5303001361		Pin-push,plastic		Appelez-nous	-
71	215608400		Screw, Clip/grille, Pan Head, 6, Ab X 1/4 C R (non-ill		Appelez-nous	-
71	215003300		Clip-grille,(2)				$ 20.00
72	5303289507		Grille/kickplate, White		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
89	215176300		Cover-machine Compt		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
93	215327101		Plug-grille,white				$ 15.10
94	218044800		Seal-air Duct Cover (non-illustrated)		Appelez-nous	-
94	5303292669		Cover-air Duct		Appelez-nous	-
95	215931300		Gasket-air Duct Cvr		Appelez-nous	-
96	215775900		Cover Fan-access				$ 30.82
97	5303289299		Bracket-im Plug		Appelez-nous	-
98	215099701		Plug-button, White, Ctr Hinge Hole				$ 5.99
99	5303294247		Grommet-shelf Mtg (non-illustrated)		Appelez-nous	-
99	5303294246		Grommet-shelf Mtg		Appelez-nous	-
100	5303288973		Support-crspr Cover				$ 24.41
*88161	5303321319		Touch-up Paint-white   (Replaces: 5303305324)			Immediately	$ 13.46
*88163	5308016571		Plug-button, Cabinet Liner				$ 4.79
*88165	5303917214		Hot Tube Repair Kit, Service (non-illustrated)				$ 393.07
1A	5303289026		Spacer-tube (non-illustrated)		Appelez-nous	-
20A	5303292405		Insulation Plug,lh		Appelez-nous	-
54A	5303289311		Rail-compr Support		Appelez-nous	-
54B	5303289292		Rail-cabinet Base, Front		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
