01 - Base & Drive (rev. E-f)
02 - Control Panel (rev. E-f)
03 - Transmission & Related Parts (rev. E-f)

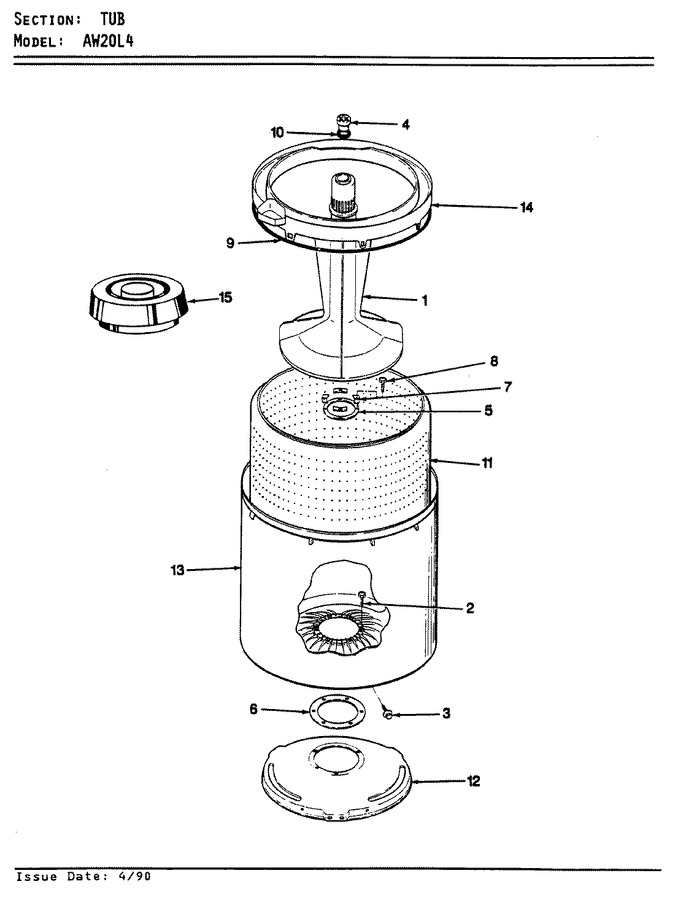

04 - Tub (rev. E-f)
05 - Water Carrying & Pump Assy. (rev. E-f)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-2456 | Agitator | E |
|
- | ||||
| 2 | 35-2062 | Screw, Shoulder Type | E |
|
- | ||||
| 3 | WP22002933 | Screw (Replaces: 25-7914) | E |
|
$ 6.91 | ||||
| 4 | 33-6241 | Cap | E |
|
- | ||||
| 5 | 33-8959 | Gasket | E |
|
- | ||||
| 6 | 35-2061 | Gasket, Tub To Housing | E |
|
- | ||||
| 7 | 35-8799 | Reinforcement Plate | E |
|
- | ||||
| 8 | 25-7783 | Screw | E |
|
- | ||||
| 9 | 35-2328 | Seal, Tub Top | E |
|
$ 49.43 | ||||
| 10 | 25-7330 | Rubber Washer | E |
|
- | ||||
| 11 | 35-2508 | Basket White | E |
|
- | ||||
| 12 | 35-2023 | Tub Support | E |
|
- | ||||
| 13 | 35-2038 | Tub | E |
|
- | ||||
| 14 | 35-2262 | Shield, Tub Top | E |
|
- | ||||
| 14 | 35-2034 | Top, Tub | E |
|
- | ||||
| 15 | 35-2550 | Dispenser, Rinse | E |
|
- |
