New Model Search:

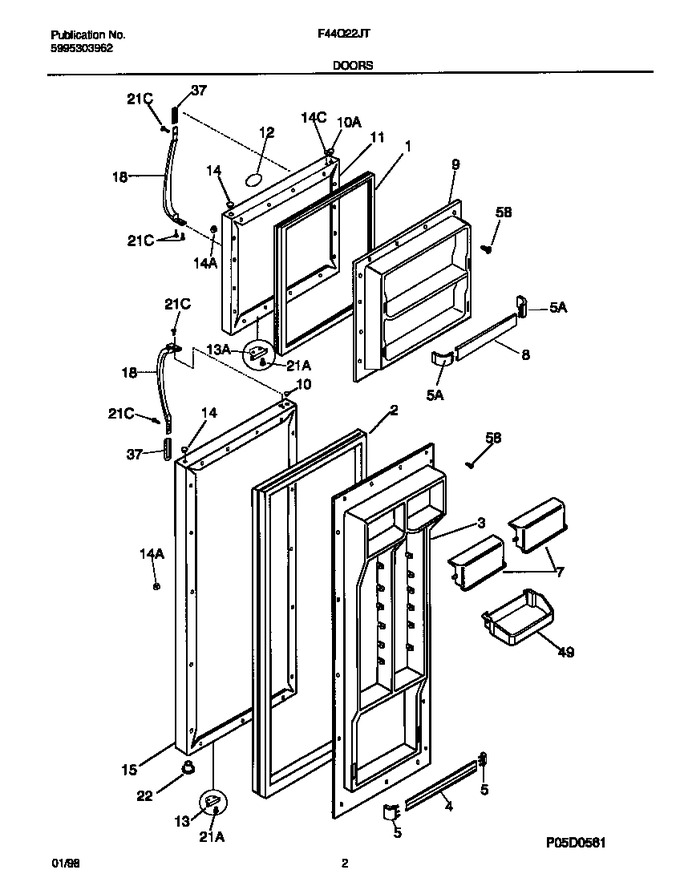

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608905 | Gasket-frzr Door, Almond, Magnetic |
|
- | |||||
| 2 | 218730615 | Gasket-refr Door, Almond, Magnetic |
|
$ 224.39 | |||||
| 3 | 215784001 | Panel, Inner Door, Refr |
|
- | |||||
| 4 | 218763628 | Rack-door |
|
- | |||||
| 5 | 218758602 | Support-door Rack, Rh/lh (Replaces: 218758601) |
|
Immediately | $ 23.39 | ||||
| 7 | 5303308341 | Door-dairy,12.96`` Wide |
|
$ 97.02 | |||||
| 8 | 218763621 | Rack-door |
|
- | |||||
| 9 | 215278301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 218696502 | Plug-button, Almond, Lg Closer Hole |
|
- | |||||
| 10 | 5303292414 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303918025 | Panel-frzr Door,almond ,w/foam Insulatn |
|
- | |||||
| 12 | 218364002 | Frame-nameplate, Almond |
|
- | |||||
| 13 | 215030011 | Door Stop, Almond, Frzr |
|
- | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 14 | 5308000181 | Plug-button, Almond |
|
- | |||||
| 14 | 218696602 | Plug-button, Almond, Sm Closer Hole |
|
- | |||||
| 14 | 215352211 | Plug-button, Almond, Handle Mtg, Refr Door Front |
|
- | |||||
| 15 | 5303918023 | Panel-refr Door,almond ,w/foam Insulatn |
|
- | |||||
| 18 | 218668002 | Handle-door, Almond |
|
- | |||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X .5 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 37 | 215867059 | Trim-handle, 4.97``, Almond, W/band & Lock |
|
- | |||||
| 49 | 215441502 | Bin-door,gallon (Replaces: 215441513) |
|
$ 176.87 | |||||
| 58 | 218749600 | Screw,10 Pan Hd ,8-18 X .5 |
|
$ 5.15 | |||||
| *81040 | 215008617 | Label-nameplate,almond ,crown |
|
- | |||||
| *81042 | 215518000 | Magnet-nameplate |
|
- | |||||
| *81043 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 37A | 215940700 | Lock-handle Trim, Stick-on |
|
- | |||||
| 37B | 218676001 | Band-decorative,chrome |
|
$ 36.17 | |||||
| 5A | 218809801 | Support-door Rack, Rh |
|
- | |||||
| 5B | 218809701 | Support-door Rack, Lh |
|
- |
