Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 35-2026 Lid (wht) (door) E-F Special Order $ 168.05

2 WP43-0057 Actuator, Door Switch   (Replaces: 43-0057) E-F Special Order $ 73.22

2 25-7436 Nylite Washer E-F Appelez-nous -
3 25-7438 Screw E-F Appelez-nous -
4 25-7086 Washer E-F Appelez-nous -
4 W10124350 Not Required Part Or See Note E-F Appelez-nous -
5 W10124350 Not Required Part Or See Note E-F Appelez-nous -
6 33-8058 Speednut E-F Appelez-nous -
6 WP35-2044 Hinge, Lid   (Replaces: 35-2044) E-F In-Stock Immediately $ 7.52

6 33-6957 Hinge Pad E-F Appelez-nous -
6 25-7455 Screw E-F Appelez-nous -
7 35-0581 Bumper, Door (lid) E-F Appelez-nous -
8 35-2063 Bushing, Insulator E-F Appelez-nous -
9 25-7463 Screw E-F Appelez-nous -
10 25-7437 Screw E-F Appelez-nous -
11 33-8911 Door Switch E-F Appelez-nous -
11 33-9064 Door Switch Asm E-F Appelez-nous -
12 33-8289 Bracket E-F Appelez-nous -
13 25-7878 Clip E-F Appelez-nous -
14 33-9063 Door Switch Lever E-F Appelez-nous -
15 35-2739 Top, Cabinet (wht) E-F Appelez-nous -
16 33-9906 Body, Bleach Dispenser E-F Appelez-nous -
17 35-0680 Cord, Power E-F Appelez-nous -
18 WP25-7893 Screw   (Replaces: 25-7893) E-F Special Order $ 7.14

19 35-2846 Hinge   (Replaces: 33-7450) E-F Special Order $ 22.94

20 33-0930 Pad, Top Hinge E-F Appelez-nous -
21 33-6099 Clamp E-F Appelez-nous -
22 53-0643 Pin, Locator E-F Appelez-nous -
23 WP681414 Screw   (Replaces: 25-7732) E-F In-Stock Immediately $ 7.07

23 34-9701 Guide, Cabinet E-F Appelez-nous -
24 W10124350 Not Required Part Or See Note E-F Appelez-nous -
25 W10124350 Not Required Part Or See Note E-F Appelez-nous -
26 35-2084 Panel, Front (wht) E-F Appelez-nous -
27 53-0120 Clip, Front Panel E-F Special Order $ 11.32

28 33-2653 Bumper, Cabinet E-F Appelez-nous -
29 35-2106 Cabinet Assy. (wht) E-F Appelez-nous -
30 33-2653 Bumper, Cabinet E-F Appelez-nous -
31 35-2108 Shield,rear(nla,order Cab Kit) E-F Appelez-nous -
32 WP681414 Screw   (Replaces: 25-7733) E-F In-Stock Immediately $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

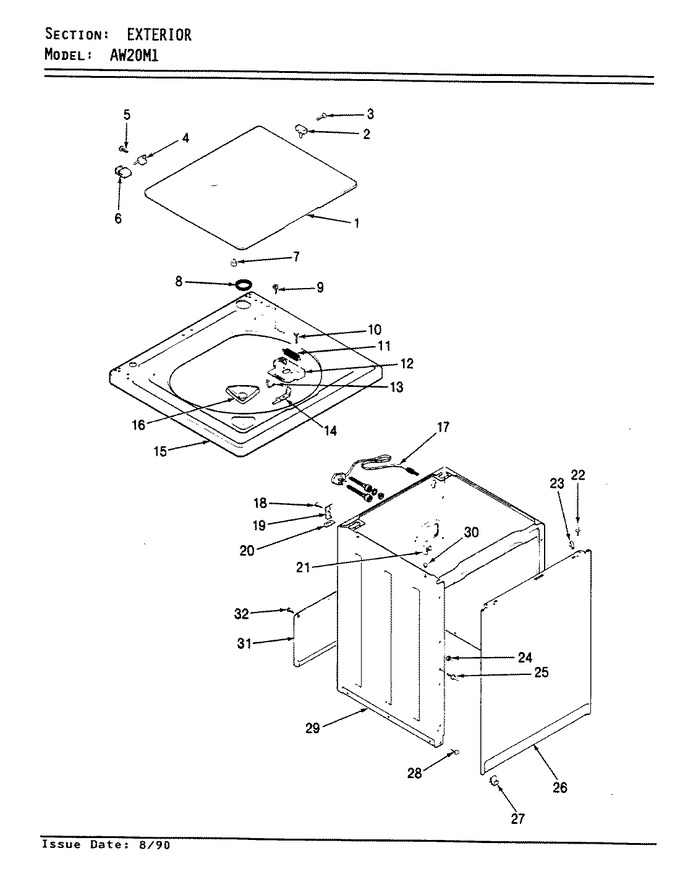

Diagram for AW20M1W
