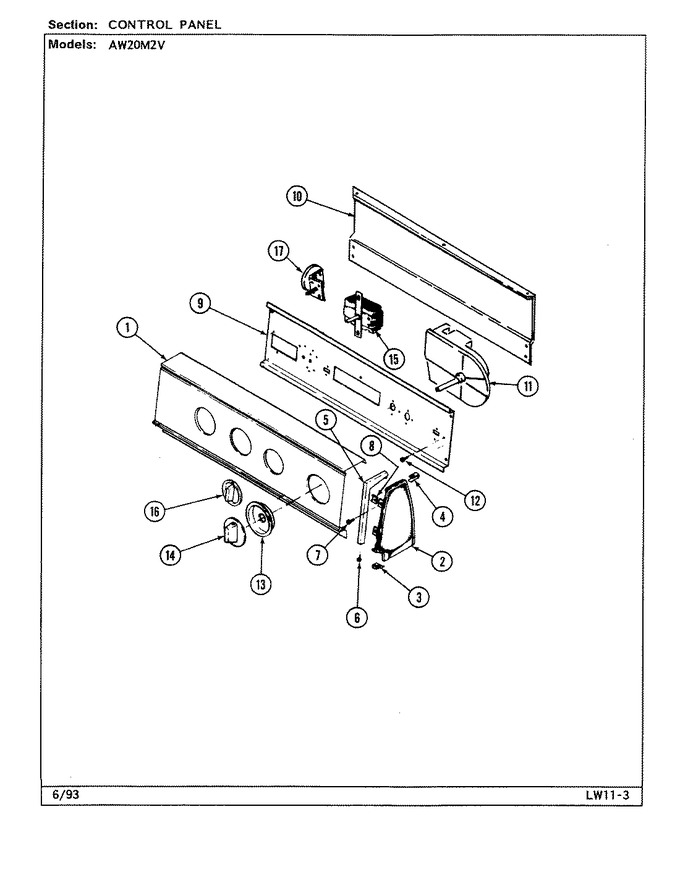

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	25-7793		Screw		Appelez-nous	-
1	35-3713		Control Panel		Appelez-nous	-
2	35-2668		Cap, End (rt)(wht)		Appelez-nous	-
2	35-2669		Cap, End (lt)(wht)		Appelez-nous	-
3	34-9487		Plate, Reinforcement		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
5	53-0278		Trim, End Cap (lt)		Appelez-nous	-
5	53-0277		Trim, End Cap (rt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
9	53-1676		Shield, Control		Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
10	35-2688		Shield, Control Panel (rear)		Appelez-nous	-
10	25-7853		Retaining Ring		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
11	35-2749		Timer		Appelez-nous	-
12	WP489483		Screw   (Replaces: 25-0088)				$ 9.78
13	35-2950		Skirt & Ring Assy		Appelez-nous	-
14	35-2672		Timer Knob		Appelez-nous	-
15	35-0119		Rotary Switch		Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
16	35-2673		Knob, Selector (wht)		Appelez-nous	-
17	WP21001554		Switch, Pressure   (Replaces: 35-3283)				$ 143.59
17	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
18	35-3278		Manual, Use & Care		Appelez-nous	-
NI	35-2352		Manual, U&c Insert		Appelez-nous	-
