View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Base
02 - Control Panel
03 - Motor & Pump
04 - Top Assy.
05 - Transmission (series 10-15)
06 - Transmission, Dual Drive (series 16)
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

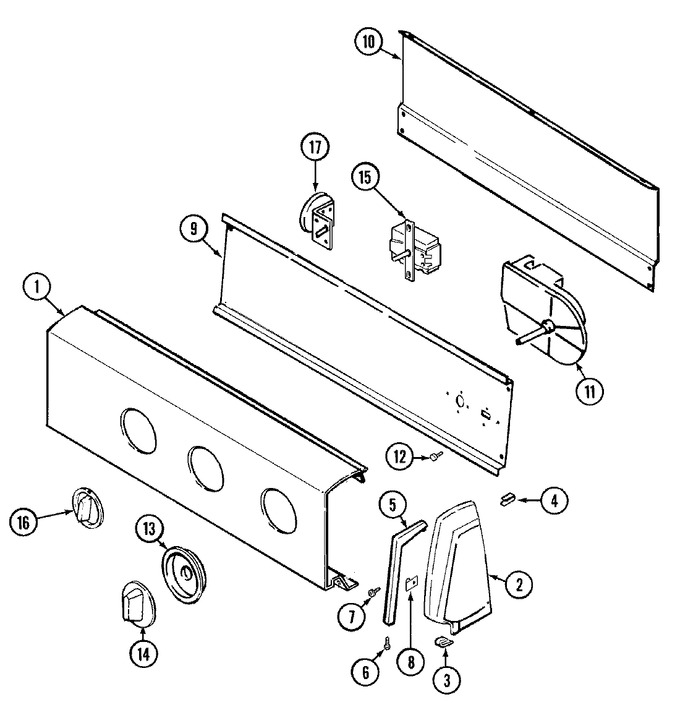

| 1 | 35-4207 | Panel, Control |
|
- | |||||
| 1 | 25-7793 | Screw |
|
- | |||||
| 1 | 21001216 | Panel, Control | 14 |
|
- | ||||
| 1 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 2 | 35-2668 | Cap, End (rt)(wht) |
|
- | |||||
| 2 | 35-2669 | Cap, End (lt)(wht) |
|
- | |||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 5 | 31001055 | Trim, Endcap (lt Wht) | 14 |
|
- | ||||
| 5 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 5 | 31001054 | Trim, Endcap (rt Wht) | 14 |
|
- | ||||
| 5 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 8 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 9 | 53-2504 | Spacer, Control Shield |
|
- | |||||
| 9 | 53-1676 | Shield, Control |
|
- | |||||
| 9 | 31001128 | Shield, Control | 12 |
|
- | ||||
| 10 | 35-2688 | Shield, Control Panel (rear) |
|
- | |||||
| 10 | 25-7853 | Retaining Ring |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 11 | 35-3840 | Timer |
|
$ 182.12 | |||||
| 11 | 21001341 | Timer | 15 |
|
$ 197.30 | ||||
| 12 | 25-0205 | Screw |
|
- | |||||
| 13 | 35-2950 | Skirt & Ring Assy |
|
- | |||||
| 13 | 21001238 | Skirt & Ring Assy. (wht) | 14 |
|
- | ||||
| 14 | 35-2672 | Timer Knob |
|
- | |||||
| 14 | 21001237 | Knob, Timer (wht) | 14 |
|
- | ||||
| 15 | 21001226 | Switch, Water Temp. 4 Position | 12 |
|
- | ||||
| 15 | 35-3855 | Switch, Temp |
|
- | |||||
| 15 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 16 | 35-2673 | Knob, Selector (wht) |
|
- | |||||
| 16 | 21001239 | Knob, Selector (wht) | 14 |
|
$ 24.61 | ||||
| 17 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 17 | WP21001554 | Switch, Water Level (Replaces: 35-3691) |
|
$ 143.59 | |||||
| 18 | 21001013 | Manual, Use & Care |
|
- | |||||
| NI | 21001033 | Manual, Use & Care |
|
- | |||||
| NI | 16002079 | Guide, Quick Ref - Admiral |
|
- |
