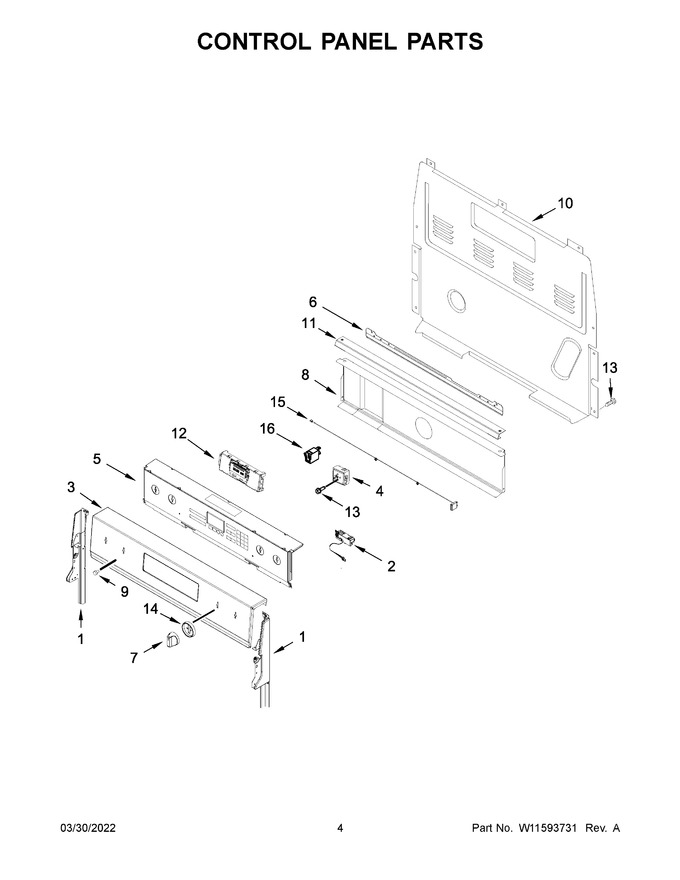

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213290		Endcap (black (left))				$ 298.09
2	W11165979		Assembly, Wifi   (Replaces: W10888670)				$ 142.81
3	W11165617		Console (stainless)   (Replaces: W10869991)				$ 462.26
4	W11129442		Switch, Infinite (left Front)   (Replaces: W10437097)			Immediately	$ 90.51
5	W11594265		Bracket, Control (includes Overlay) (black)   (Replaces: W11527492)				$ 333.46
6	W11443964		Bracket, Eye Brow (black)				$ 190.66
7	W11416802		Knob (stainless)   (Replaces: W10917219)			Immediately	$ 64.22
8	W10134247		Shield, Heat			Immediately	$ 307.56
9	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 187.75
11	W10525121		Bracket, Console Mounting				$ 84.73
12	W11165552		Control, Maxwell   (Replaces: W10871059)			Immediately	$ 339.89
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
14	W10918419		Bezel (stainless)			Immediately	$ 64.72
15	W11291077		Antenna   (Replaces: W11223046)		Appelez-nous	-
16	WP8523265		Hot Surface Indicator   (Replaces: W10432504)			Immediately	$ 77.68
14A	W10917223		Bezel (black Stainless)		Appelez-nous	-
1A	W11213292		Endcap (black (right))				$ 61.42
3A	W11165616		Console (black Stainless)   (Replaces: W10881625)				$ 462.29
4A	W10857622		Switch, Infinite (right Front)   (Replaces: W10437092)			Immediately	$ 190.52
4B	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 94.18
4C	W10917724		Switch, Infinite (left Rear)   (Replaces: W10437094)			Immediately	$ 116.42
7A	W11674369		Knob (black Stainless)   (Replaces: W10917220)				$ 18.46
