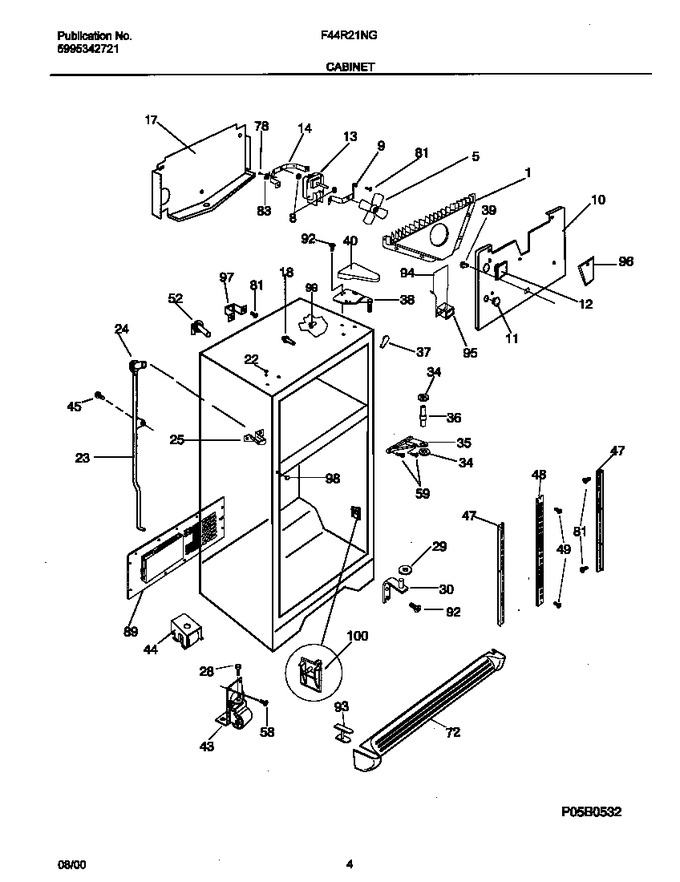

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
5	5303292398		Fan Blade				$ 50.35
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5304416552		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303292393		Plug-decorative,icemaker Holes		Appelez-nous	-
13	5300158289		Motor-evap Fan   (Replaces: 218661700)			Immediately	$ 149.94
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
17	5304415955		Trough-drain		Appelez-nous	-
18	218980401		Support-evap Cover,(2)		Appelez-nous	-
22	215774901		Plug-button,white ,upr Hinge Holes			Immediately	$ 18.20
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5303292412		Spout-drain Tube				$ 13.81
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	218993701		Bracket-lower Hinge,rh ,w/hinge Pin		Appelez-nous	-
34	218737000		Washer-ctr Hnge Pin				$ 1.37
35	218220101		Bracket-ctr Hinge, Light Gray		Appelez-nous	-
36	218971101		Pin-center Hinge				$ 42.84
37	5303321081		Trim-cabinet Corner, White				$ 8.82
38	218215243		Bracket-upper Hinge,with Closer ,white ,lh				$ 79.07
39	215848000		Spacer-air Channel		Appelez-nous	-
40	5303318773		Cover-upper Hinge, White				$ 42.47
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
44	218738300		Roller Assy, Rear, (2)				$ 51.98
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	218233300		Channel-shelf Mtg,side ,(2)				$ 86.05
48	5303292395		Channel-shelf Mtg,center				$ 157.34
49	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
52	215454600		Tube-water,ice Mold Fill ,elbow				$ 81.11
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
72	218359604		Grille/kickplate, White		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
89	5303288947		Cover-machine Compt		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
93	218362601		Plug-grille, White		Appelez-nous	-
94	5303319993		Cover-air Duct		Appelez-nous	-
95	218663101		Gasket-air Duct Cvr		Appelez-nous	-
96	215775901		Cover-fan Access				$ 22.85
97	5303289299		Bracket-im Plug		Appelez-nous	-
98	215099701		Plug-button,white				$ 5.99
100	5303288973		Support-pan Cover				$ 24.41
*62768	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
*62769	5303001361		Pin-mounting, Push-in, Plastic		Appelez-nous	-
*62770	218875801		Washer,nylon ,0.245 Id W/nibs				$ 9.40
*62771	218979601		Tapping Plate,lower Hinge		Appelez-nous	-
*62772	218979701		Tapping Plate,lower Hinge		Appelez-nous	-
*62773	5308017044		Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23) X 7/8				$ 6.34
*62774	215058000		Plug-wtr Inlet Tube				$ 2.73
*62775	218044800		Seal-air Duct Cover		Appelez-nous	-
*62779	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
*62780	5308016571		Plug-button,cab Liner Holes				$ 4.79
99A	5303294246		Grommet-shelf Mtg,1.25`` Long		Appelez-nous	-
99B	5303294247		Grommet-shelf Mtg,.69`` Long		Appelez-nous	-
