View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:

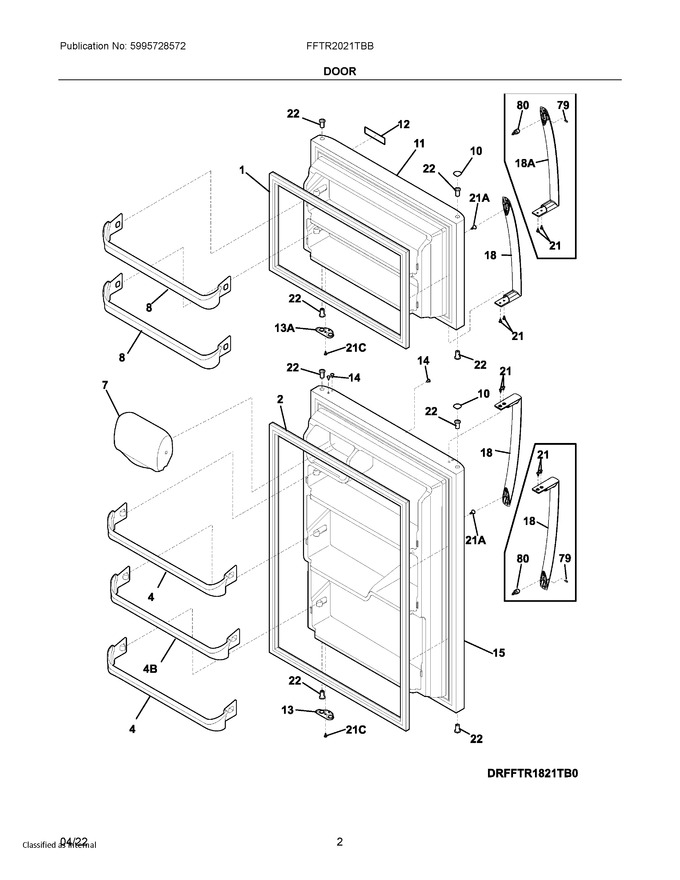

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193211 | Gasket-frzr Door, Black, Magnetic |
|
$ 187.11 | |||||
| 2 | 242193214 | Gasket-refr Door, Black, Magnetic |
|
$ 190.85 | |||||
| 4 | 240534901 | Rack-door |
|
Immediately | $ 47.03 | ||||
| 7 | 240337712 | Door-dairy, W/o Graphics, Clear (Replaces: 240337703) |
|
Immediately | $ 36.41 | ||||
| 8 | 240534801 | Rack-door |
|
Immediately | $ 49.62 | ||||
| 10 | 240381303 | Plug-button, Black, Hinge Brg Hole |
|
$ 69.77 | |||||
| 11 | 240450313 | Door-frzr, Black, Complete Assy |
|
$ 597.57 | |||||
| 12 | 5304511145 | Badge, Frigidaire, Black |
|
$ 4.55 | |||||
| 13 | 240312422 | Door Stop, Black, Ref |
|
$ 15.17 | |||||
| 14 | 240494001 | Button, Plug, White |
|
Immediately | $ 18.20 | ||||
| 15 | 240450413 | Door-refr, Black, Complete Assy |
|
$ 513.51 | |||||
| 18 | 5303918824 | Handle-door, Black, W/block & Screw (Replaces: 5304511148) |
|
Immediately | $ 49.29 | ||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507147 | Bearing-hinge, Black, (8) |
|
Immediately | $ 7.59 | ||||
| 13A | 240312415 | Door Stop, Black, Frzr |
|
$ 21.27 | |||||
| 14A | 240494003 | Plug-button, Black |
|
$ 18.20 | |||||
| 21A | 240521303 | Screw, #10-16 X 1/2 |
|
Immediately | $ 30.20 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 4B | 240534701 | Rack-door, 4b |
|
Immediately | $ 28.80 | ||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 |
