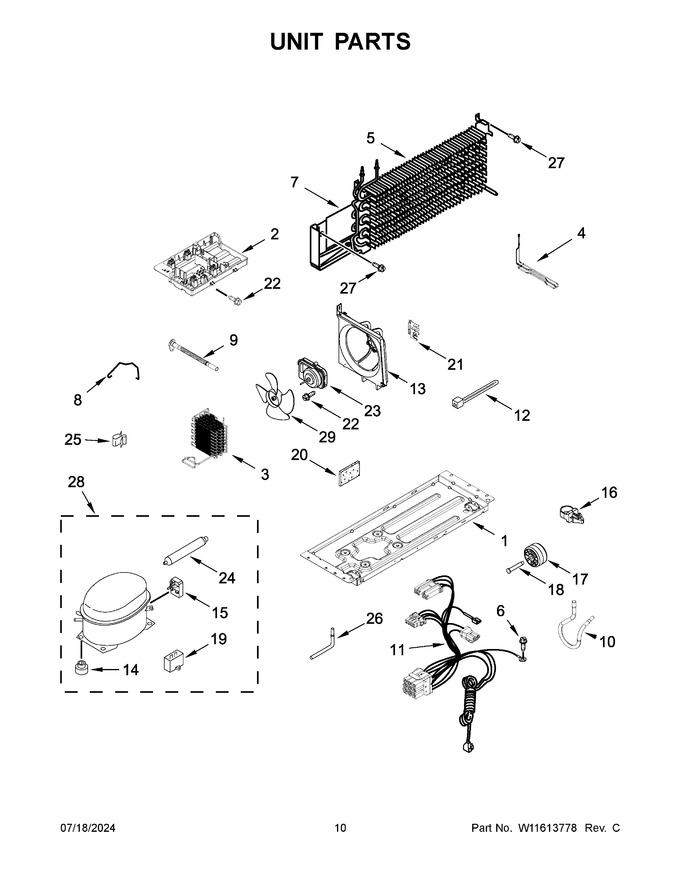

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10573847 | Support Plate, Compressor |
|
Immediately | $ 127.42 | ||||
| 2 | W10565417 | Tray, Evaporator |
|
$ 32.88 | |||||
| 3 | W11722672 | Condenser (also Order The Following Lokring⢠Parts) (Replaces: W11299410) |
|
$ 240.21 | |||||
| 4 | W11579349 | Heater, Defrost (Replaces: W11339349) |
|
Immediately | $ 100.52 | ||||
| 5 | W11579351 | Assembly, Evaporator (also Order The Following Lokring⢠Parts) (Replaces: W11497963) |
|
Immediately | $ 183.52 | ||||
| 6 | 8533919 | Screw |
|
- | |||||
| 7 | W10570572 | Shield, Heat |
|
$ 28.11 | |||||
| 8 | W11577799 | Strap, Bale (Replaces: W11495051) |
|
- | |||||
| 9 | W10582029 | Extension, Drain Tube |
|
- | |||||
| 10 | W11518247 | Tube, Suction |
|
- | |||||
| 11 | W11677726 | Harness, Unit (Replaces: W11238411) |
|
$ 63.90 | |||||
| 12 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.11 | |||||
| 13 | WPW10570380 | Scroll, Fan (Replaces: W10570380) |
|
$ 68.36 | |||||
| 14 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 7.29 | |||||
| 15 | W11547180 | Device, Combination Start (start Relay And Overload) (Replaces: W11359381) |
|
Immediately | $ 34.05 | ||||
| 16 | 2219077 | Clip, Harness |
|
$ 55.06 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Roller (Replaces: 2264756) |
|
$ 6.47 | |||||
| 19 | WPW10662129 | Capacitor (Replaces: W10590083) |
|
Immediately | $ 52.97 | ||||
| 20 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 21 | W11340313 | Bracket, Evaporator |
|
$ 64.59 | |||||
| 22 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 166.55 | ||||
| 24 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring⢠Parts) (Replaces: W10805035) |
|
Immediately | $ 35.21 | ||||
| 25 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 9.53 | |||||
| 26 | W11461499 | Tube, Process |
|
$ 55.72 | |||||
| 27 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 28 | W11580057 | Compressor (also Order The Following Lokring⢠Parts) (Replaces: W11476127) |
|
Immediately | $ 342.99 | ||||
| 29 | W11204896 | Blade, Fan (Replaces: W10675036) |
|
$ 87.25 | |||||
| 24A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 24.79 | ||||
| 24B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 37.63 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 22.19 | ||||
| 28B | W11504430 | 7/6 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 23.26 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (process Tube To Compressor) |
|
Immediately | $ 22.19 | ||||
| 3A | W11504445 | 5/4 Nr Ms 00 (high Side To Condenser) |
|
Immediately | $ 24.79 | ||||
| 3B | W11504432 | 6/5 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 22.19 | ||||
| 5A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 39.87 | ||||
| 5B | W11506620 | 8 Nk Al 00 (suction Line To Evaporator) |
|
Immediately | $ 27.51 | ||||
| NI | ARIF9EF3E505B7CEB5AB5525882DBF27D97 | Refrigerant Charge 56 Grams (r600a) |
|
- |
