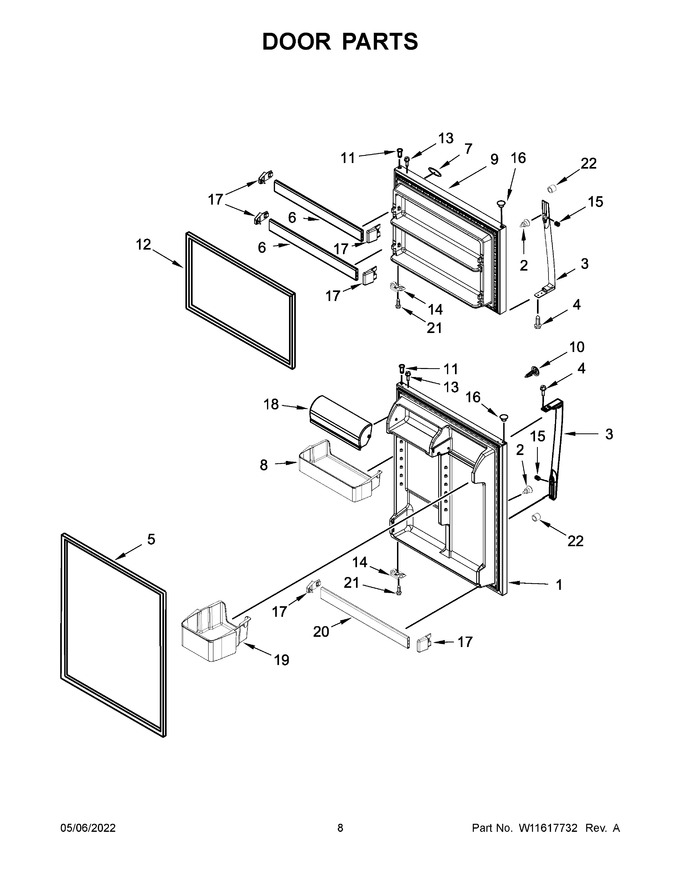

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10856289		Refrigerator Door (includes Door Gasket) (stainless)   (Replaces: W10856289)				$ 685.76
2	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.47
3	W10837029		Handle, Door (includes Illus. 15) (stainless)   (Replaces: W10653471)			Immediately	$ 169.81
4	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 7.66
5	W10249195		Gasket, Door (grey)   (Replaces: W11406600)				$ 287.83
6	W10592150		Trim, Door				$ 107.96
7	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
8	WPW10308868		Bin, Large Door   (Replaces: W10308868)			Immediately	$ 76.37
9	LW10856291		Freezer Door (includes Door Gasket) (stainless)   (Replaces: W10856291)				$ 653.72
10	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 16.75
11	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 10.89
12	W10249196		Gasket, Door (grey)   (Replaces: W11406598)			Immediately	$ 239.23
13	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
15	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 14.21
16	WP2254517		Plug, Hinge Sleeve (grey)   (Replaces: 2254517)			Immediately	$ 20.86
17	W10838039		Cap, Trim End   (Replaces: W10592153)			Immediately	$ 47.73
18	W11675283		Compartment, Door   (Replaces: W10601425)				$ 29.43
19	WPW10308869		Bin, Medium   (Replaces: W10308869)			Immediately	$ 64.96
20	W11126062		Trim, Door   (Replaces: W10592148)				$ 109.15
21	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
22	WPW10511911		Bushing, Handle   (Replaces: W10511911)				$ 13.81
