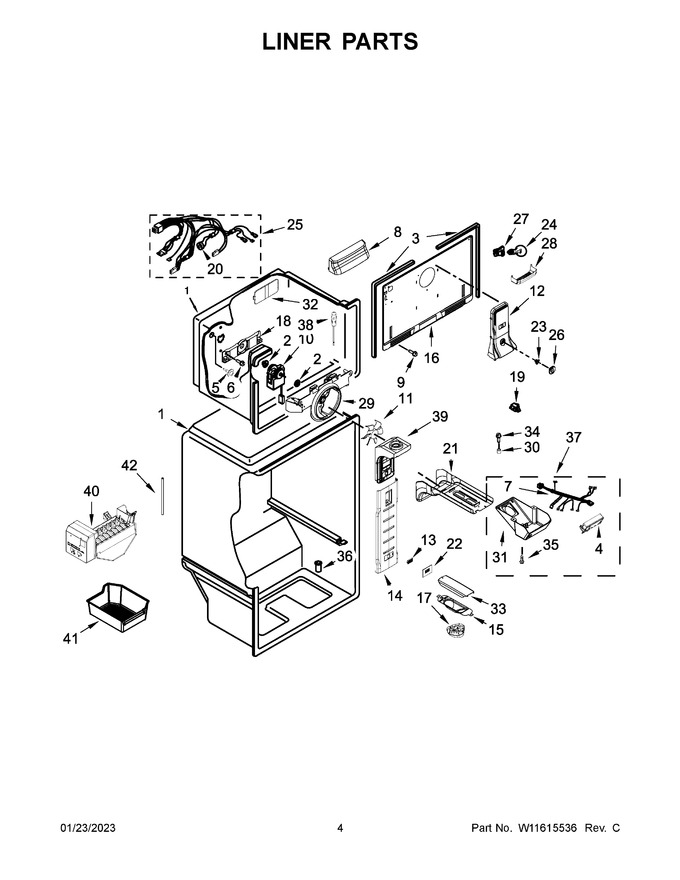

03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Following Parts Not Illustrated |
|
- | |||||
| 2 | WP2264462 | Grommet (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (Replaces: 2254360) |
|
$ 24.10 | |||||
| 4 | W11613574 | Control, Adaptive Defrost (Replaces: W11476563) |
|
Immediately | $ 276.05 | ||||
| 5 | WP941839 | Hole Plug (white) (Replaces: 941839) |
|
$ 6.89 | |||||
| 6 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 7 | W11441783 | Assembly, Control Box Wire (Replaces: W11203362) |
|
$ 116.84 | |||||
| 8 | WPW10313917 | Housing, Freezer Lighting (Replaces: W10313917) |
|
Immediately | $ 81.96 | ||||
| 9 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 8.86 | |||||
| 10 | WP2315539 | Motor, Evaporator Fan (Replaces: 2315539) |
|
Immediately | $ 74.93 | ||||
| 11 | WP2163777 | Blade, Fan (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | W10707377 | Air Tower, Fc |
|
$ 86.95 | |||||
| 13 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 14 | W10705785 | Cover, Air Filter |
|
$ 83.89 | |||||
| 15 | W10300161 | Shield, Light |
|
Immediately | $ 82.82 | ||||
| 16 | W10617507 | Cover, Evaporator |
|
$ 187.25 | |||||
| 17 | W11577968 | Module, Led (Replaces: W11429584) |
|
Immediately | $ 39.92 | ||||
| 18 | 2254454 | Bracket, Evaporator Fan Rear |
|
Immediately | $ 64.67 | ||||
| 19 | W11384469 | Switch, Light (Replaces: W10847853) |
|
Immediately | $ 33.51 | ||||
| 20 | WPW10392132 | Bi-metal, Defrost (Replaces: W10392132) |
|
Immediately | $ 7.76 | ||||
| 21 | WPW10305175 | Cover, Air Diffuser (Replaces: W10305175) |
|
$ 98.02 | |||||
| 22 | WPW10330850 | Grille, Air Filter Bottom (Replaces: W10330850) |
|
$ 32.19 | |||||
| 23 | W11206112 | Baffle, Air Manual (Replaces: W10662269) |
|
$ 73.32 | |||||
| 24 | W11518235 | Lamp, Led (Replaces: W11160686) |
|
Immediately | $ 26.36 | ||||
| 25 | W11609466 | Assembly, Freezer Wire (Replaces: W11314510) |
|
Immediately | $ 70.77 | ||||
| 26 | W11026417 | Knob, Air Control (Replaces: W10570952) |
|
$ 78.73 | |||||
| 27 | W11661565 | Socket, Light (Replaces: W10440814) |
|
Immediately | $ 30.70 | ||||
| 28 | WPW10313918 | Lens, Light (Replaces: W10313918) |
|
Immediately | $ 81.72 | ||||
| 29 | W10850162 | Bracket, Fan Motor (Replaces: W10321162) |
|
Immediately | $ 27.83 | ||||
| 30 | W10418502 | Spacer |
|
- | |||||
| 31 | W10841668 | Box, Control |
|
$ 87.61 | |||||
| 32 | W10336009 | Cup, Screw |
|
$ 66.34 | |||||
| 33 | WPW10348614 | Cover, Light (Replaces: W10348614) |
|
$ 101.11 | |||||
| 34 | W10141596 | Screw |
|
$ 7.90 | |||||
| 35 | WP489174 | Screw (Replaces: 489174) |
|
$ 6.26 | |||||
| 36 | WP2210509 | Valve, Release (Replaces: 2210509) |
|
$ 84.99 | |||||
| 37 | W11613298 | Box, Control (includes Overlay) (Replaces: W11476574) |
|
$ 174.32 | |||||
| 38 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 101.55 | ||||
| 39 | W10904684 | Multiflow Assembly (Replaces: W10885143) |
|
$ 168.62 | |||||
| 40 | W11771818 | Assembly, Icemaker (complete) (Replaces: W11321603) |
|
$ 396.82 | |||||
| 41 | W11625904 | Pan, Ice Cube (Replaces: W10898951) |
|
$ 58.14 | |||||
| 42 | 2003812 | Tube, Water Inlet |
|
- |
