Cabinet Parts


Dispenser Parts


Freezer Door Parts


Liner Parts


Optional Parts


Refrigerator Door Parts


Shelf Parts


Unit Parts

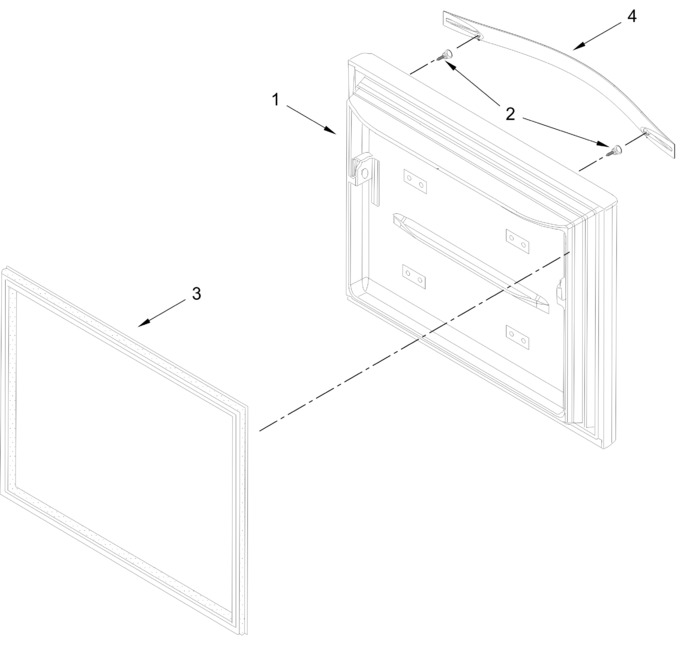

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARIC431C3CB872CE83C8A94312D8BEB3AE8		Door, Freezer (includes Items 2 & 3)		Appelez-nous	-
2	WPW10170540		Screw   (Replaces: W10170540)			Immediately	$ 9.12
3	ARI1AC123B8AF433EC4E71D1CFF06410E2D		Gasket, Door		Appelez-nous	-
4	ARIC260A529337179B3286550A799664DD9		Assembly, Handle		Appelez-nous	-
	W11625017		Gasket, Door (black)   (Replaces: W11464961)				$ 305.72
	LW10865766		Door Assembly (black Stainless, Includes Door Gasket)   (Replaces: W10865766)				$ 750.93
	LW10413530		Door Assembly (black, Includes Door Gasket)   (Replaces: W10413530)				$ 446.88
	W10460611		Gasket, Door (beige)   (Replaces: W11464962)			Immediately	$ 273.77
	W11125499		Handle, Door (white)				$ 157.73
	LW10353182		Freezer Door, (white, Includes Door Gasket)   (Replaces: W10353182)				$ 548.60
	W10836785		Gasket, Door (grey)   (Replaces: W11464960)				$ 250.46
	W11199711		Handle, Door (stainless)   (Replaces: W11125495)			Immediately	$ 171.40
	LW10858419		Freezer Door, Stainless (includes Door Gasket)   (Replaces: W10858419)				$ 756.26
	W11199708		Handle Assembly (black Stainless)   (Replaces: W11125496)				$ 165.59
	W11125500		Handle, Door (black)				$ 157.73
