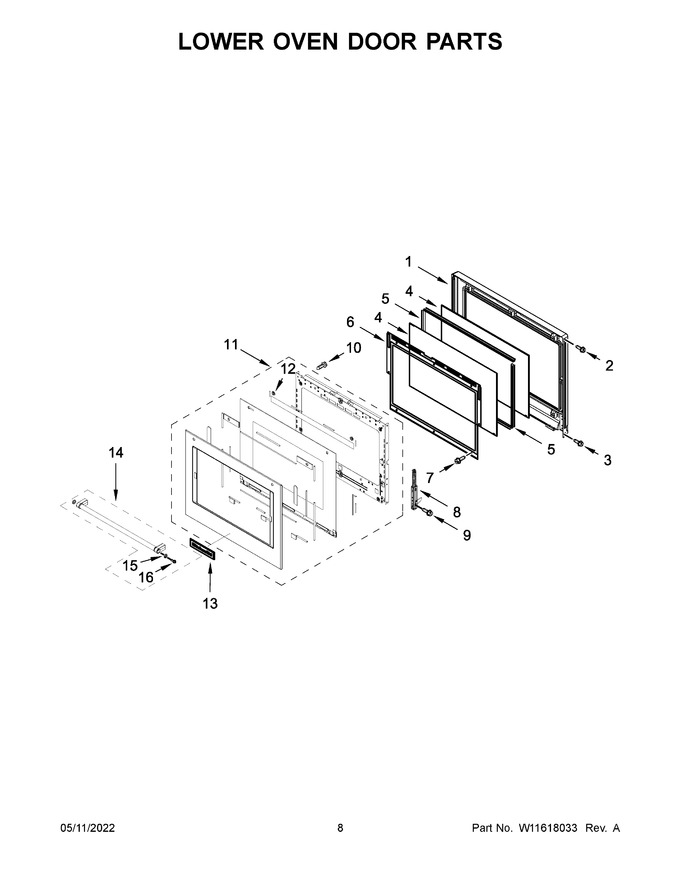

01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598186 | Liner Assembly (Replaces: W11302593) |
|
$ 318.00 | |||||
| 2 | 7101P37560 | Screw |
|
- | |||||
| 3 | W11617225 | Screw (Replaces: W11290045) |
|
$ 12.66 | |||||
| 4 | WPW10284902 | Glass, Inner (Replaces: W10618123) |
|
$ 196.98 | |||||
| 5 | W11736672 | Spacer, Air Divider (Replaces: W11302731) |
|
Immediately | $ 46.34 | ||||
| 6 | W11598188 | Retainer, Air Divider Glass (Replaces: W11204277) |
|
$ 70.15 | |||||
| 7 | 7101P42660 | Screw |
|
- | |||||
| 8 | W11617222 | Hinge, Door (left) (Replaces: W11296054) |
|
$ 73.98 | |||||
| 9 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 6.98 | ||||
| 10 | W11602624 | Screw (black) (Replaces: W11317731) |
|
Immediately | $ 12.65 | ||||
| 11 | W11600240 | Door Assembly (white) (Replaces: W11264144) |
|
$ 858.90 | |||||
| 12 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 12.69 | ||||
| 13 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 65.31 | ||||
| 14 | W11525064 | Assembly, Door Handle (stainless) (Replaces: W11241574) |
|
$ 204.84 | |||||
| 15 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 19.84 | ||||
| 16 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 7.19 | ||||
| 11A | W11600239 | Door Assembly (stainless) (Replaces: W11295967) |
|
$ 884.74 | |||||
| 11B | W11600238 | Door Assembly (black Stainless) (Replaces: W11295968) |
|
$ 1,095.52 | |||||
| 8A | W11617231 | Hinge, Door (right) (Replaces: W11296055) |
|
$ 73.98 |
