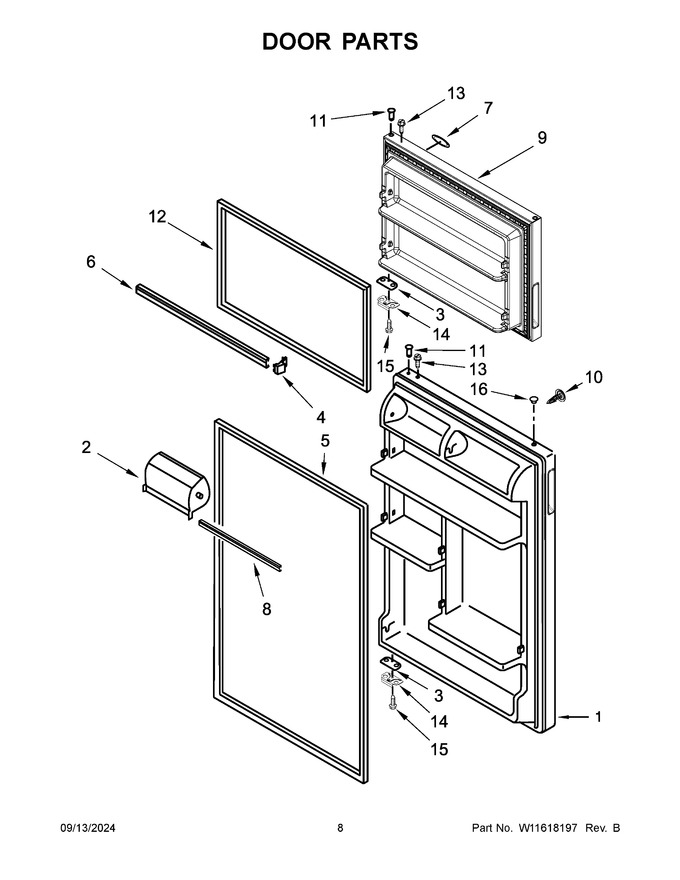

05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11618722 | Refrigerator Door (includes Door Gasket) (white) (Replaces: W11291965) |
|
$ 458.02 | |||||
| 2 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 4 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 5 | 2319266W | Gasket, Door (white) (Replaces: 2264729) |
|
$ 295.55 | |||||
| 6 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 7 | W11428492 | Badge (white) (Replaces: W11046244) |
|
$ 71.63 | |||||
| 8 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 109.15 | ||||
| 9 | W11618719 | Freezer Door (includes Door Gasket) (white) (Replaces: W11291966) |
|
$ 331.70 | |||||
| 10 | W10830984 | Plug, Hole (white) (Replaces: W10663736) |
|
$ 7.18 | |||||
| 11 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 6.98 | |||||
| 12 | WP2319263W | Gasket, Door (white) (Replaces: 2264726) |
|
Immediately | $ 135.93 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 16 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 |
