01 - Cover Sheet

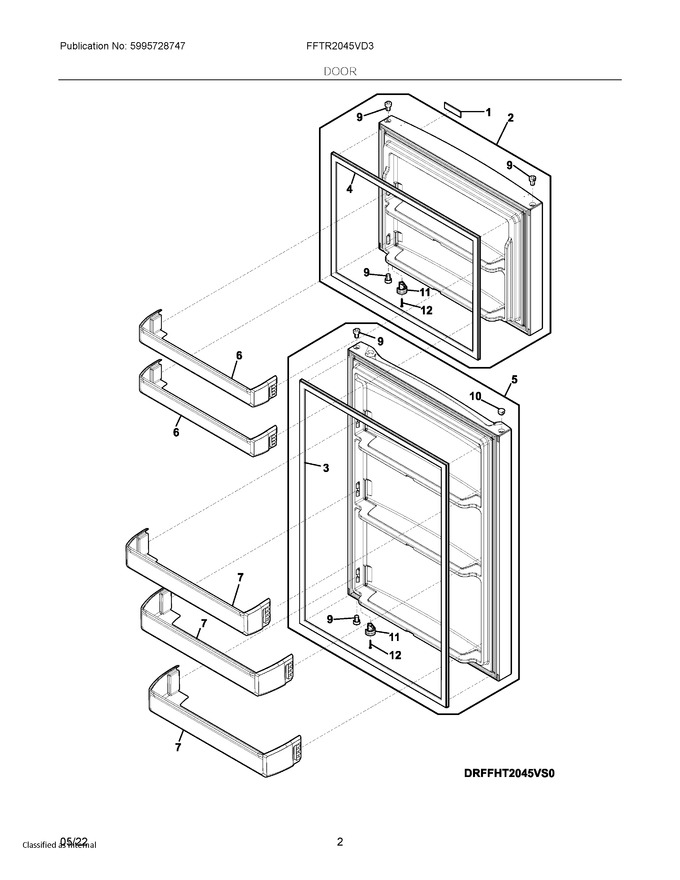

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304510903 | Badge, Frigidaire, Black Stainless |
|
$ 50.81 | |||||
| 2 | 5304529523 | Door-frz Foamed Ss Blk W30 Pk |
|
$ 308.21 | |||||
| 3 | 5304528905 | Gasket, Door, Black, Fresh Food |
|
$ 205.12 | |||||
| 4 | 5304528906 | Gasket, Door, Black, Freezer |
|
Immediately | $ 186.95 | ||||
| 5 | 5304529517 | Door-ff Foamed 30w Pk Blkss |
|
$ 381.07 | |||||
| 6 | 5304524054 | Bin, Door, White, Freezer |
|
$ 50.61 | |||||
| 7 | 5304524055 | Bin, Door, 6", Refrigerator |
|
Immediately | $ 81.06 | ||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.28 | ||||
| 10 | 5304522187 | Cover, Hinge Bearing, Gray |
|
Immediately | $ 7.44 | ||||
| 11 | 5304522238 | Hook, Door Closer, Gray |
|
Immediately | $ 8.34 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| NI | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 |
