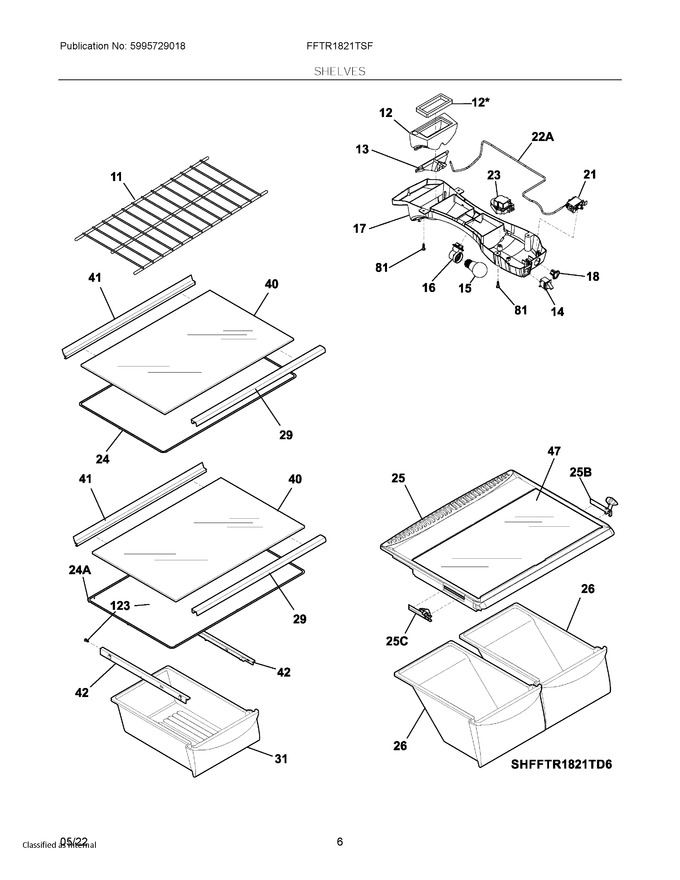

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240358008		Shelf, Freezer				$ 91.80
14	241554901		Switch-light/lamp   (Replaces: 5304522510)				$ 70.88
15	5304511738		Light Bulb, Led			Immediately	$ 24.26
16	241559802		Socket		Appelez-nous	-
24	240372409		Frame, Sliding Shelf, Full Width				$ 127.08
25	240364787		Cover-crisper Pan			Immediately	$ 120.98
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 148.35
29	240357704		Trim-shelf, Front			Immediately	$ 66.25
31	240530811		Pan-meat, W/o Graphics, Clear			Immediately	$ 135.77
40	240350620		Glass-shelf, 23.78" X 16.34			Immediately	$ 140.90
41	240561502		Trim-shelf, Rear			Immediately	$ 71.59
42	240530601		Track, Meat Pan Hanger, Lh			Immediately	$ 65.98
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
123	215005101		Screw, Hanger/rlr Mtg, 8-10 X 7/16				$ 14.89
24A	240372410		Frame, Sliding Shelf, Full Width, W/hanger Tabs				$ 273.39
25B	241613501		Control-humidity, Rh			Immediately	$ 12.05
25C	241613502		Control-humidity, Lh				$ 47.78
42A	240530701		Track, Meat Pan Hanger, Rh			Immediately	$ 65.98
NI	218515401		Clip, Grille/tube, & Hinge				$ 17.72
NIA	241705801		Spacer, Shelf/wtr Tube				$ 7.09

    View Diagram in Separate Window       Print Part List
