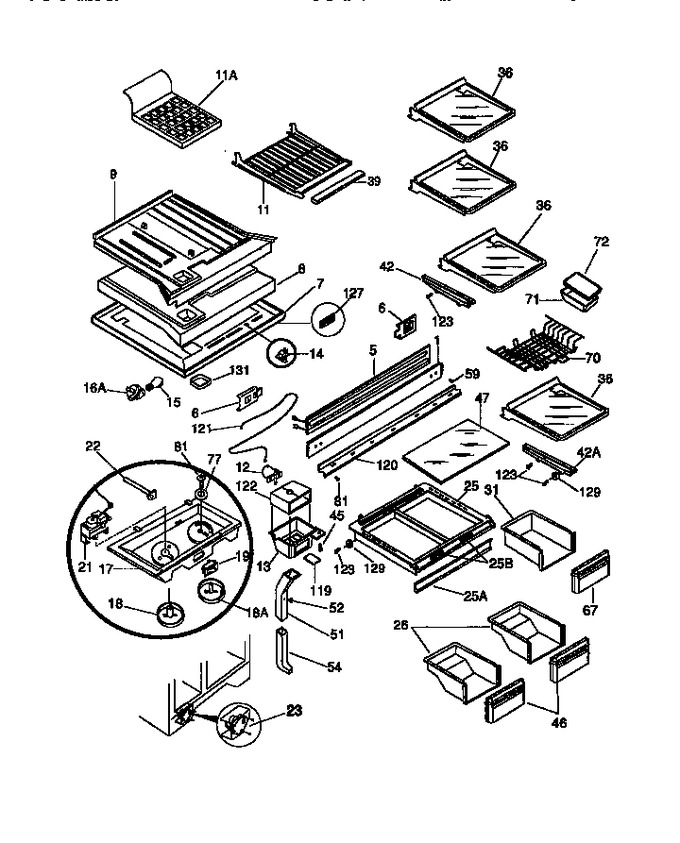

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300210		Mullion, Black		Appelez-nous	-
5	215527200		Heater, Mullion, 115v		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
8	215771700		Gasket, Ice Chute (non Illustrated)		Appelez-nous	-
9	215019800		Bottom Panel, Frzr		Appelez-nous	-
11	5303292429		Shelf, Freezer, Cantilever, Wide, Rh		Appelez-nous	-
12	215363800		Spacer-air Deflectr(non-illustrated)		Appelez-nous	-
13	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
14	241547902		Switch-light/lamp   (Replaces: 215486600)			Immediately	$ 23.25
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	215935700		Nut-anchor,control Box Mtg (non-illustrated)		Appelez-nous	-
18	5303296667		Knob-temp Control,refr		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker				$ 27.08
21	5303001260		Screw				$ 6.73
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
23	215277000		Cover-defrost Timer, Top (non-illustrated)		Appelez-nous	-
25	215216619		Cover, Crisper Pan, With Beam, Trim, Humid Cont		Appelez-nous	-
26	5303292432		Pan, Crisper, (2)		Appelez-nous	-
31	5303304565		Pan, Meat		Appelez-nous	-
36	215406101		Shelf, Cantilever, ``spill, Safe``, Half, (4)		Appelez-nous	-
39	215217542		Trim, Frzr Shelf		Appelez-nous	-
42	5303209272		Hanger-pan/basket, Lh				$ 90.83
42	5303209273		Hanger-pan/basket, Rh				$ 60.06
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303288970		Front, Crisper Pan, (2)		Appelez-nous	-
47	5303294005		Insert, Pan Cover, Glass		Appelez-nous	-
51	215133200		Insulation-air Duct, Rear (non-illustrated)		Appelez-nous	-
52	215133000		Damper-air, Meat Kpr Duct (non-illustrated)		Appelez-nous	-
54	215133100		Duct, Meat Keeper, Lower		Appelez-nous	-
59	218188500		Screw-mullion Mtg, 10-32 X 3/4, Lh (non-illustrated)		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
59	215069518		Cap, Mullion Screw, Black (non Illustrated)		Appelez-nous	-
67	5303292433		Front, Meat Pan		Appelez-nous	-
70	215453001		Tray, Sliding, Wire, Coming Dish		Appelez-nous	-
71	5303275753		Dish, Coming Glass		Appelez-nous	-
72	5303275754		Cover-corning Dish		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
119	215132700		Cap, Air Duct				$ 18.38
120	218019202		Seal-refr Top		Appelez-nous	-
121	215209400		Nut,push-on,damper Cable (non-illustrated)		Appelez-nous	-
122	215132502		Block, Air Deflector		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
127	215771600		Grille-air Return		Appelez-nous	-
129	5303299153		Bearing-roller (non-illustrated)				$ 5.09
131	215379800		Gasket-ice Discharge		Appelez-nous	-
*93164	215339900		Clip, Cantilevr Shlf				$ 5.83
*93165	215848000		Spacer-air Channel		Appelez-nous	-
11A	215309601		Shelf-freezer, Plastic		Appelez-nous	-
121A	215364001		Cable-damper Contrl				$ 82.01
129A	5303299152		Roller-hanger				$ 12.34
12A	215363900		Washer-air Deflectr (non-illustrated)		Appelez-nous	-
12B	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
13A	215420300		Cover-air Deflector		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	215932903		Box-control		Appelez-nous	-
18A	5303296668		Knob-temp Control,frzr		Appelez-nous	-
21A	5303305486		Control-temperature				$ 122.43
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23B	5303289058		Shield-defrost Timr, Btm (non-illustrated)		Appelez-nous	-
23C	215846602		Timer-defrost   (Replaces: 5303275811)			Immediately	$ 28.20
25A	5303300010		Trim-crisper Cover		Appelez-nous	-
25B	5303301393		Control-humidity		Appelez-nous	-
42A	215002401		Hanger-pan/tray,rh (non-illustrated)				$ 85.84
42A	215002301		Hanger-pan / Tray, Lh				$ 65.82
51A	215133300		Insulation-air Duct, Front (non-illustrated)		Appelez-nous	-
51B	215132801		Duct, Meat Keeper, Upper		Appelez-nous	-
52A	215132901		Control, Damper, Meat Kpr Duct		Appelez-nous	-
7A	215028105		Top Panel, Refr		Appelez-nous	-
8A	215038602		Divider, Styrofoam		Appelez-nous	-
