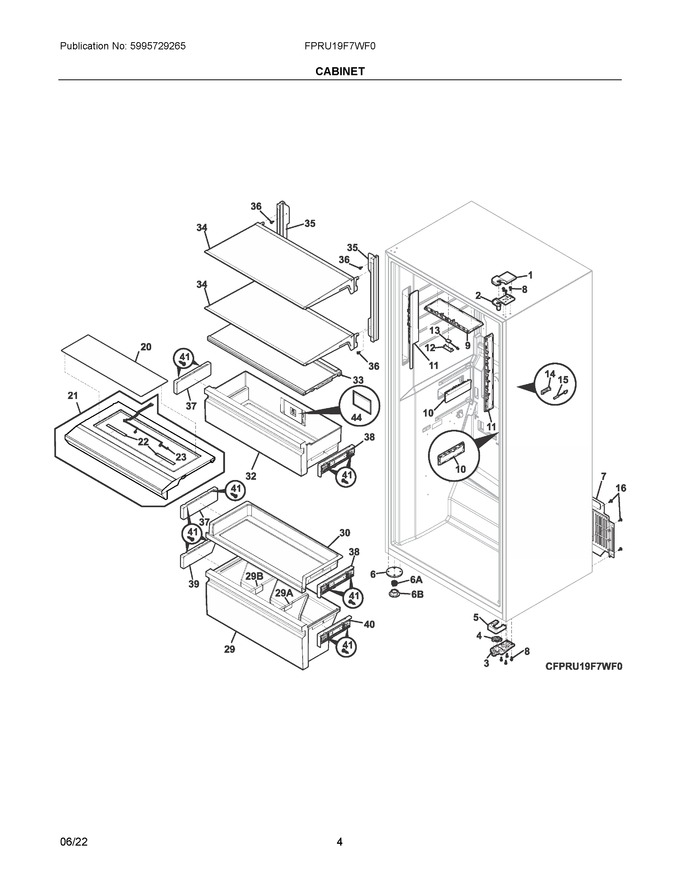

03 - Cabinet


04 - System


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304524638		Cover, Hinge, Stainless, Rh Upper				$ 10.85
2	5304524636		Hinge, Door, Rh Upper				$ 242.59
3	5304525238		Hinge Assembly, Lower, Rh			Immediately	$ 65.08
4	5304525238		Bearing Assembly, Lower Hinge, Rh, W/stop   (Replaces: 5304525236)			Immediately	$ 65.08
5	5304525237		Cover, Hinge, Rh Lower				$ 11.17
6	5304528813		Base, Leveler Leg, Front			Immediately	$ 15.51
7	5304525858		Cover, Access, Machine Compt.				$ 55.67
8	5304522279		Screw, Hex Wsh Hd Quad, M5 X 16			Immediately	$ 3.08
9	5304536788		Light Assembly, Led, 2x Upper, W/lens, Pcb, Harn   (Replaces: 5304524657)				$ 53.54
10	5304524656		Light Assembly, Led, 1x, W/lens, Pcb, Harn			Immediately	$ 55.67
11	5304524658		Light Assembly, Led, 3x, W/lens, Pcb, Harn				$ 120.23
12	5304524761		Cover, Reed Switch				$ 10.85
13	5304527992		Switch, Reed   (Replaces: 242326001)			Immediately	$ 81.69
14	5304524759		Cover, Sensor				$ 10.85
15	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
20	5304524780		Glass, Control Cover   (Replaces: 5304524781)				$ 103.38
21	5304532285		Control Panel, Assembly, W/light-ui Pcb		Appelez-nous	-
22	5304524650		Pc Board, Led Cluster, Polaris				$ 56.12
23	5304524766		Harness, Jumper, Led				$ 11.06
28	5304523741		Motor-fan, Evaporator			Immediately	$ 139.54
29	5304524710		Drawer Assembly, Full Width, Lower, W/dividers				$ 242.64
30	5304532284		Shelf Assembly, Slide Out, W/glass		Appelez-nous	-
31	5304453707		Screw, Quad Hilo, #8-18 X 0.50   (Replaces: 241953901)			Immediately	$ 15.92
32	5304524701		Drawer Assembly, Upper, W/trim				$ 228.01
33	5304539607		Crisper Cover, Assembly, W/glass-gasket   (Replaces: 5304524894)				$ 146.59
34	5304524669		Shelf Assembly, Glass, W/trim			Immediately	$ 205.25
35	5304539145		Rail, Shelf Support   (Replaces: 5304524841)		Appelez-nous	-
36	5304519765		Screw, Hx Wash Hd, M4.2 X 12			Immediately	$ 3.03
37	5304524850		Slide Assembly, 9 Inch, Lh				$ 91.82
38	5304524849		Slide Assembly, 9 Inch, Rh				$ 91.09
39	5304524852		Slide Assembly, 8 Inch, Lh				$ 87.48
40	5304524851		Slide Assembly, 8 Inch, Rh				$ 87.48
41	5304524845		Screw, Quad Hilo, 4.2x1.41x15.9, Slide Mtg			Immediately	$ 2.89
44	5304524705		Absorber, Ethylene		Appelez-nous	-
29A	5304525861		Divider, Lower Drawer, Rh			Immediately	$ 34.70
29B	5304525862		Divider, Lower Drawer, Lh			Immediately	$ 32.54
6A	5304528814		Nut, Leg Leveler			Immediately	$ 8.68
6B	5304528815		Foot, Leg Leveler			Immediately	$ 10.13
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
NI	5304523801		Screw, Hex Wash Hd, M4 X 10		Appelez-nous	-
NI	242039703		Screw, Type Ab, #10-16		Appelez-nous	-
NIA	297350900		Gasket, Shelf				$ 18.08
