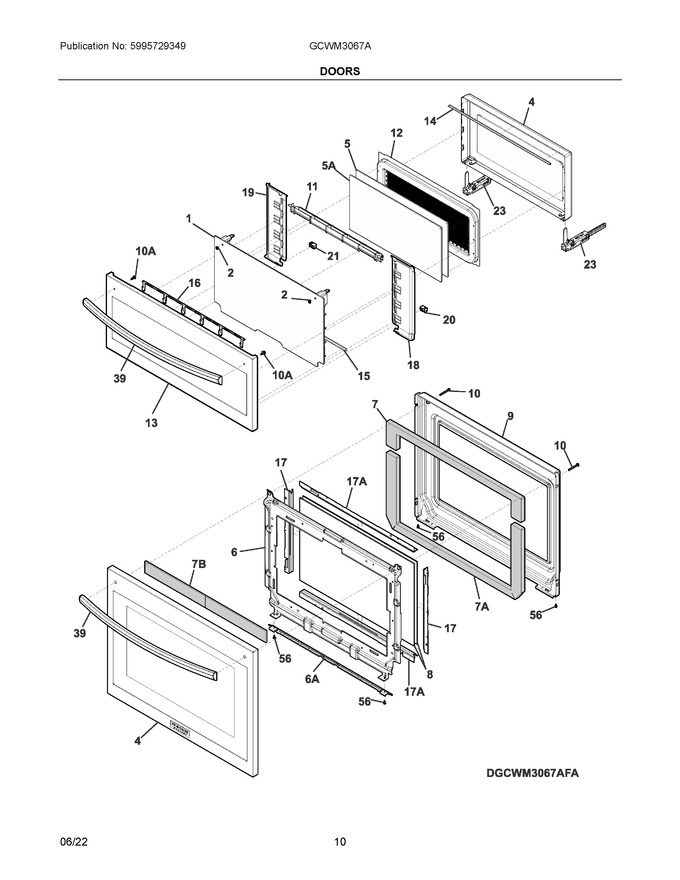

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555118433		Door Glass, Assembly, Front, Microwave			Immediately	$ 151.33
2	330158601		Spacer, Door Handle		Appelez-nous	-
3	561626486		Door Frame, Inner, Microwave, W/glass			Immediately	$ 221.45
4	5304526649		Door Assembly, Outer, Steel/glass, Ez Care, Stainless/black, W/badge			Immediately	$ 241.41
5	807625502		Glass, Door, Inner, W/graphics		Appelez-nous	-
6	5304526282		Shield, Wool, Door				$ 69.77
7	140293846022		Insulation, Door, Top   (Replaces: 5304526656)			Immediately	$ 7.15
8	5304526387		Glass, Door, Inner, Shr, Pf			Immediately	$ 166.09
9	5304526278		Liner, Oven Door, Midnight Black		Appelez-nous	-
10	316433305		Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg.				$ 2.28
11	A06645500		Cover, Door Glass, Top, Separator				$ 41.72
12	555040920		Inner Door, Assembly, Microwave			Immediately	$ 184.59
13	5304530413		Door Assembly, Outer, Steel/glass, Stainless-black, Microwave				$ 357.65
14	808082001		Gasket, Door Cover, Microwave				$ 90.30
15	808140001		Tape, Drip, Front, Door Glass				$ 36.70
16	5304525161		Cover, Door Top, Plastic				$ 28.90
17	5304526284		Bracket, Glass Pack, Verticle			Immediately	$ 12.13
18	5304530399		Cover, Door Column, Rh			Immediately	$ 49.37
19	5304530400		Cover, Door Column, Lh			Immediately	$ 47.93
20	5304525159		Stopper, Plastic, Rh Door				$ 9.86
21	5304525160		Stopper, Plastic, Lh Door				$ 9.86
23	A06683602		Hinge, Door, Microwave				$ 100.56
39	140172171054		Handle, Door, Stainless, Gallery   (Replaces: 5304526487)			Immediately	$ 48.57
56	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.03
10A	5303310510		Screw, 10-24 X 0.625				$ 14.18
17A	5304526285		Bracket, Glass Pack, Horizontal				$ 9.10
5A	555033602		Glass, Door, Inner				$ 90.25
6A	5304530443		Bracket, Door Protection, Lower				$ 32.62
7A	5304526655		Insulation, Door, Bottom			Immediately	$ 9.10
7B	5304526530		Insulation, Foil, Door				$ 15.17
NI	349479701		Screw, Pt T20, 4 X 10, (8)		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
