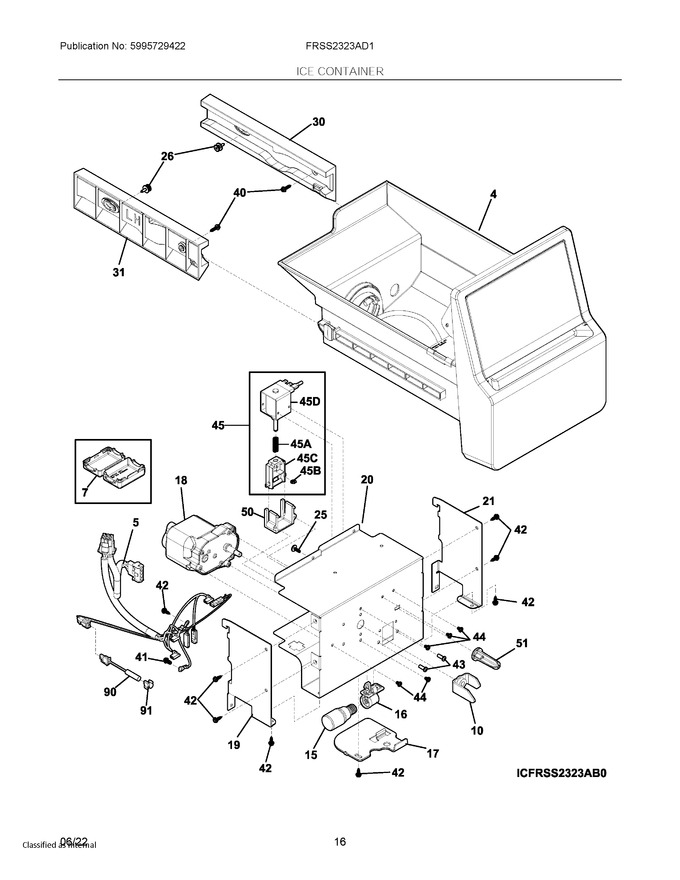

FRSS2323AD1 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
4	5304527168	Ice Container Assembly, W/moving Parts			$ 180.50
5	5304525991	Harness, Wiring, Ice Maker, & Auger Assy			$ 63.45
7	5304526063	Cover, Connector, Ice Maker			$ 169.65
10	241726501	Bar-drive			$ 58.82
15	5304522314	Bulb, Light, E17/12 Led		Immediately	$ 40.19
16	5304522315	Socket, Led Light		Immediately	$ 10.62
17	5304521688	Shield, Light, Freezer	Appelez-nous	-
18	5304526014	Motor, Auger		Immediately	$ 172.09
19	5304525944	Cover Guard, Motor, Lh	Appelez-nous	-
20	241734803	Cover, Motor	Appelez-nous	-
21	5304527217	Cover Guard, Motor, Rh	Appelez-nous	-
25	242015001	Screw, 8-18 X 1/2		Immediately	$ 16.30
26	241690602	Screw, Cr Pan Hd, 10-16 X 0.500 (Replaces: 215503205)		Immediately	$ 10.63
30	5304525945	Rail, Ice Container, Rh	Appelez-nous	-
31	5304525946	Rail, Ice Container, Lh			$ 100.11
40	5304455650	Screw, Hex Washer Head, 8-15a X 0.625, Low Profile			$ 14.18
41	241885001	Housing-crusher (Replaces: 241685601)			$ 75.83
42	5308000039	Screw, Hex Washer Head, 8-32ca X 0.500, Serrated Head	Appelez-nous	-
43	215503203	Screw, Cr Pan Hd, 10-16 X 0.500		Immediately	$ 7.09
44	218359202	Screw, 8-32 X 1/4 (Replaces: 241842101)			$ 10.63
45	241675705	Solenoid, Assembly		Immediately	$ 138.22
50	241675601	Guide-solenoid			$ 80.09
51	5304511761	Stop, Rotation			$ 4.03
90	240597220	Sensor, Temperature, 10k, Ntc (Replaces: 240597203)		Immediately	$ 5.16
91	241519401	Clip, Sensor			$ 8.51
45A	241675902	Spring-solenoid			$ 6.38
45B	241676001	E-ring-solenoid			$ 70.16
45C	241676101	Actuator-solenoid			$ 64.49
45D	241675804	Solenoid, 115v	Appelez-nous	-
NI	218515401	Clip, Grille/tube, & Hinge			$ 17.72
