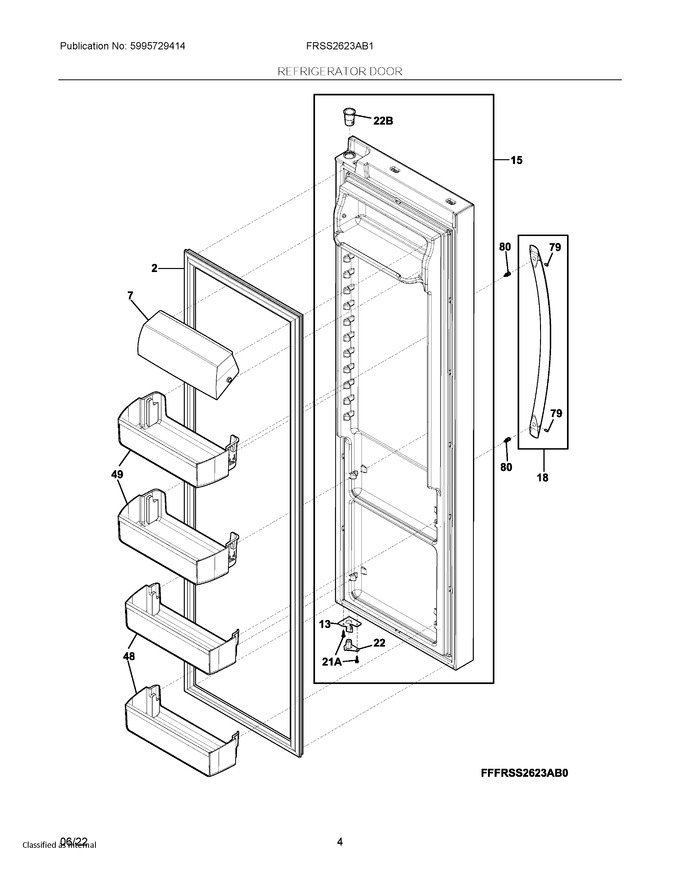

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 225.62 | ||||
| 7 | 5304525904 | Cover, Compartment, Dairy |
|
Immediately | $ 61.56 | ||||
| 13 | 5304527379 | Stop, Door, Black, Fresh Food |
|
$ 15.17 | |||||
| 15 | 5304526136 | Door Assembly, Fresh Food, Black, Complete |
|
$ 257.31 | |||||
| 18 | 5304536620 | Handle, Door, Black, W/set Screws (Replaces: 5304510342) |
|
$ 76.24 | |||||
| 22 | 5303918892 | Bushing, Door Closer, Black (Replaces: 5304525924) |
|
$ 30.08 | |||||
| 48 | 5304536363 | Bin Assembly, 2 Liter, Ff Door (Replaces: 5304525906) |
|
$ 44.75 | |||||
| 49 | 5304536368 | Bin Assembly, Gallon, Ff Door (Replaces: 5304525905) |
|
Immediately | $ 30.37 | ||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 |
