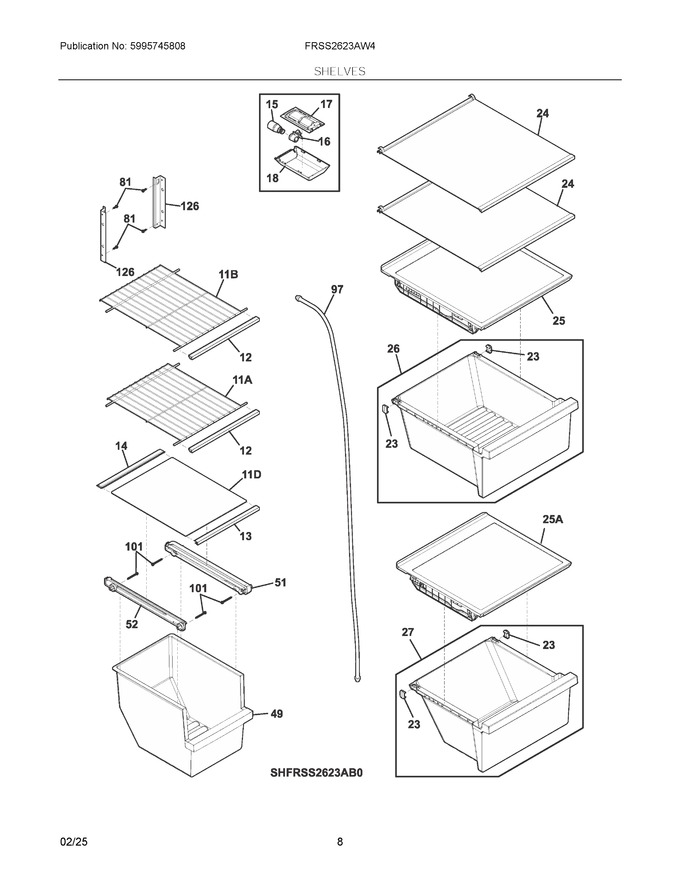

05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304525936		Trim, Wire Shelf, White		Appelez-nous	-
13	5304525937		Trim, Glass Shelf, Freezer, Front		Appelez-nous	-
14	5304527128		Trim, Freezer Shelf, Rear				$ 16.69
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 40.19
16	5304522315		Socket, Led Light			Immediately	$ 10.62
17	5304526001		Housing, Light, Fresh Food				$ 12.13
18	5304526002		Lens, Light, Fresh Food				$ 22.75
23	5304525911		Clip, Slide, Crisper			Immediately	$ 10.62
24	5304525933		Shelf Assembly, Glass, White				$ 129.68
25	5304525934		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket			Immediately	$ 161.28
26	5304536308		Cridsper Pan, Upper, W/slide Clips   (Replaces: 5304525942)				$ 108.90
27	5304536307		Cridsper Pan, Lower, W/slide Clips   (Replaces: 5304525943)			Immediately	$ 95.30
49	5304525919		Basket, Freezer, Sliding				$ 72.15
51	240343002		Hanger-basket, Rh				$ 65.22
52	240343102		Hanger-basket, Lh				$ 69.77
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
97	242220119		Tube, Water, 97.5", Natural, Ilter, Secondary Valve			Immediately	$ 30.47
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
126	241674401		Channel, Auger Mtg, Lh				$ 47.48
11A	241657512		Shelf, Fixed, Freezer   (Replaces: 241657502)				$ 16.87
11B	241657514		Shelf, Fixed, Upper, Freezer   (Replaces: 241657504)		Appelez-nous	-
11D	240350605		Shelf-freezer, Glass, Lower				$ 106.93
126A	241674402		Channel, Auger Mtg, Rh				$ 43.24
25A	5304525935		Crisper Cover, Assembly, Glass, Lower, W/trim-gasket		Appelez-nous	-
NIA	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
