SELECT A DIAGRAM

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet, Light Shields, Mullion


05 - Shelves, Water Tank, 3-door Mullion

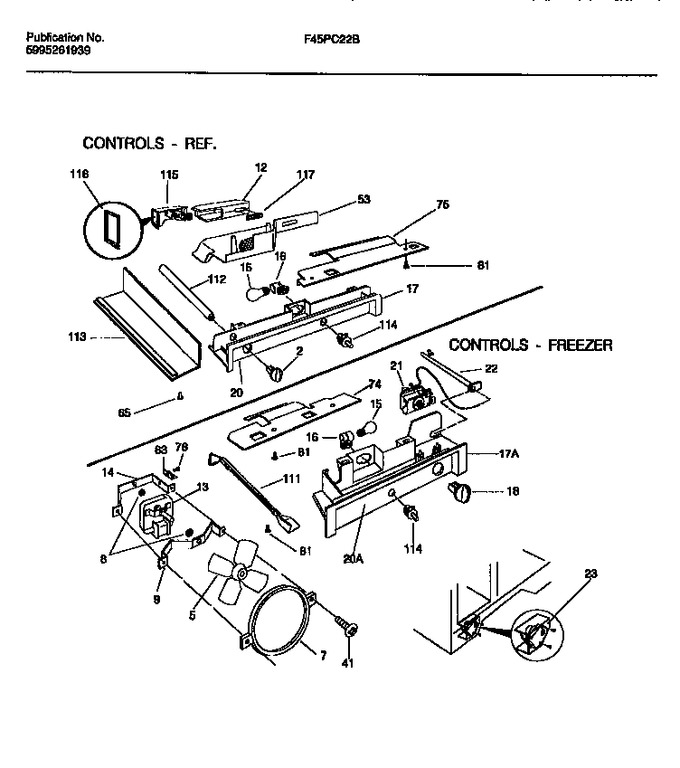

06 - Controls, Damper, Fan Section


07 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303289045		Knob-damper Control		Appelez-nous	-
5	5308000010		Fan Blade			Immediately	$ 49.03
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
12	215901100		Diffuser-air		Appelez-nous	-
13	215348100		Motor-evap Fan		Appelez-nous	-
13	215474201		Washer, ``slinger``, Nylon, Evap Fan Shaft (non-illustrat			Immediately	$ 18.43
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	241559801		Socket-light/lamp   (Replaces: 5303289050)				$ 72.68
17	5303289513		Box, Control, Frzr		Appelez-nous	-
18	5303289054		Knob-temp Control		Appelez-nous	-
20	5303301521		Label-control Box,refr		Appelez-nous	-
21	5303001260		Screw				$ 6.73
21	5303294323		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215277000		Cover-defrost Timer, Top (non-illustrated)		Appelez-nous	-
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	5303289058		Shield-defrost Timr, Btm (non-illustrated)		Appelez-nous	-
23	215846602		Timer-defrost   (Replaces: 5303275811)			Immediately	$ 28.20
41	5308000039		Screw		Appelez-nous	-
41	5303209814		Nut, ``u`` Type, No. 8-15(a) (non-illustrated)		Appelez-nous	-
53	215177800		Box-damper Control		Appelez-nous	-
53	215267300		Block-foam, 1.75`` Square (non-illustrated)		Appelez-nous	-
65	5303001361		Pin-push,plastic		Appelez-nous	-
74	5303289516		Shield - Light,frzr		Appelez-nous	-
75	5303289052		Shield-light, Refr		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
111	5303289024		Wireway, Frzr		Appelez-nous	-
112	215277101		Rod-damper Extn		Appelez-nous	-
113	5303289047		Cover, Dampr Rod Ext		Appelez-nous	-
114	5303272130		Switch, Light/lamp		Appelez-nous	-
115	215011501		Damper Assy, W/seal		Appelez-nous	-
116	215011400		Seal-damper, Foam		Appelez-nous	-
117	215011700		Louver, Damper Cont Box		Appelez-nous	-
*25206	215188300		Screw, Control Box Mtg, Hex Head, 8a X 1, Refr/frzr		Appelez-nous	-
17A	5303289515		Box, Control, Frzr		Appelez-nous	-
20A	5303304816		Label, Control Box, Frzr		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
