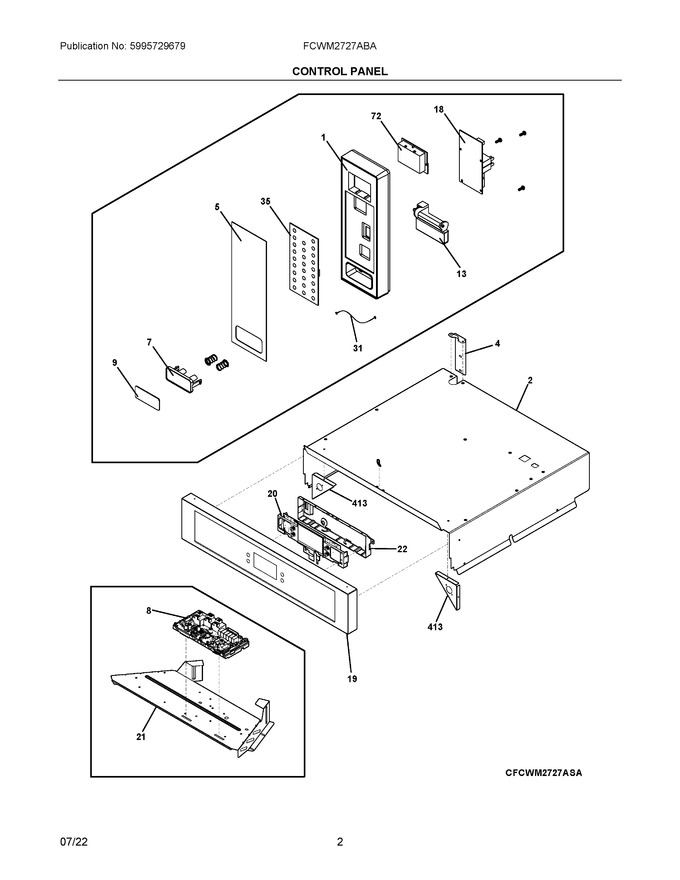

01 - Cover Sheet


02 - Control Panel


03 - Microwave Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520027		Control Panel, Microwave				$ 87.16
2	5304527959		Support, Plate		Appelez-nous	-
4	5304532393		Bracket, Conduit		Appelez-nous	-
5	5304520029		Membrane, Touch Pad				$ 123.47
7	5304520028		Button, Door Opening		Appelez-nous	-
8	140171068061		Board Assembly, Ovc Control, W/bracket   (Replaces: 5304526480)			Immediately	$ 127.86
9	5304520025		Cover, Button, Decorative		Appelez-nous	-
13	5304520026		Lever, Door Opening				$ 17.78
18	5304520031		Pc Board, Control				$ 241.46
19	5304527962		Control Panel, Assembly, Black		Appelez-nous	-
20	5304537022		Controller, Electronic, Eoc   (Replaces: 5304532552)				$ 175.50
21	139028002		Bracket, Mounting				$ 38.37
22	5304523582		Housing, Controller			Immediately	$ 34.13
31	5304520032		Connector		Appelez-nous	-
35	5304520030		Touch Pad, Pc Board				$ 187.97
72	5304519326		Pc Board, Display				$ 184.68
413	807874501		Gusset, 3.5 X 3.5				$ 78.67
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304525448		Harness, Wiring, Low Voltage				$ 86.15
NI	5304525394		Harness, Grounding, Control Panel		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	387872717		Screw, M4, 2 X 10, Black, W/washer		Appelez-nous	-
