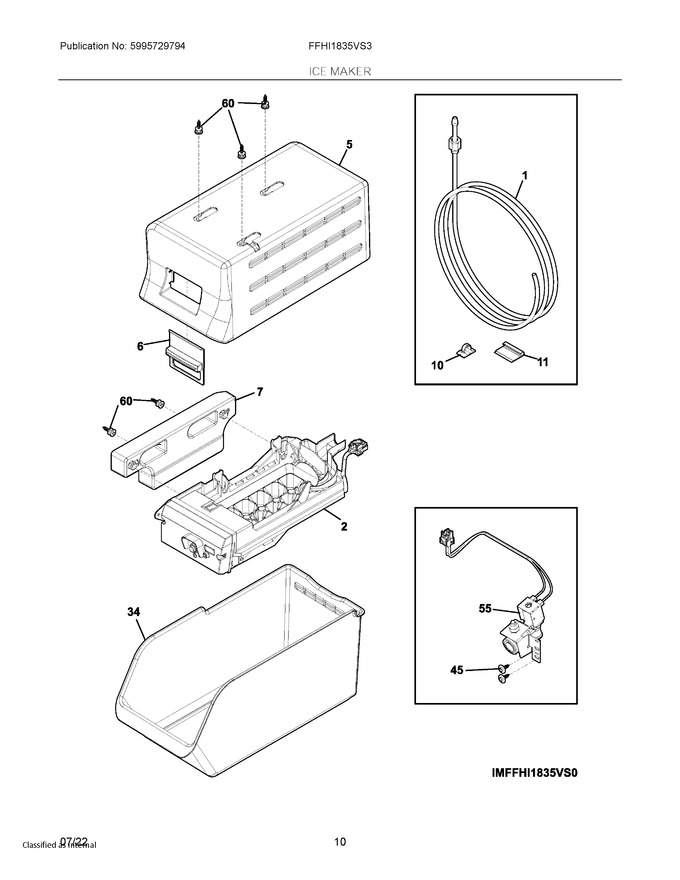

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976923		Tube, Water, Valve To Im, W/nut		Appelez-nous	-
2	5304532555		Ice Maker, Flex Tray, 2				$ 146.47
5	5304520538		Cover, Ice Maker		Appelez-nous	-
6	5304520539		Door, Ice Maker Cover		Appelez-nous	-
7	5304520537		Bracket, Ice Maker		Appelez-nous	-
10	218990901		Clip, Wire/tube				$ 74.42
11	218515401		Clip, Grille/tube, & Hinge				$ 17.72
34	5304520535		Container, Ice Bucket				$ 60.67
45	5304525288		Screw, Shoulder, M4.2 Hi-lo Qdrx				$ 2.28
55	5304538014		Valve, Water, Single Solenoid   (Replaces: 5304520540)			Immediately	$ 46.56
60	5304520542		Screw, Shld Hi-lo Qdrx, M4.2 X 15.9		Appelez-nous	-
NI	241500305		Screw, Hex Hd, #8-18 X 5/8				$ 3.03
