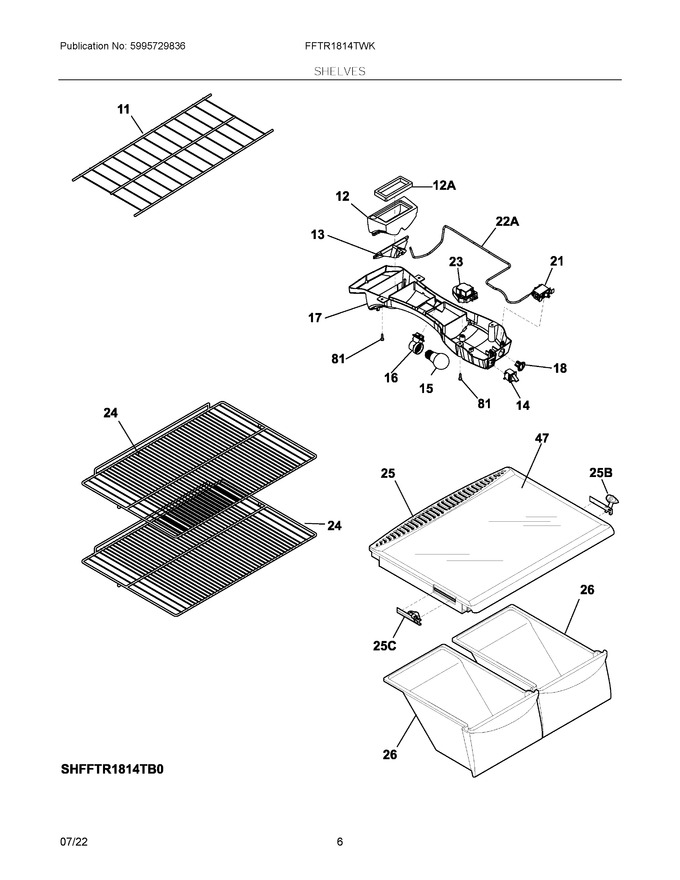

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	218515401		Clip, Grille/tube, & Hinge				$ 17.72
12	241542001		Diffuser, Air, Top			Immediately	$ 74.42
13	240362601		Diffuser, Air, Bottom			Immediately	$ 41.81
14	241554901		Switch-light/lamp   (Replaces: 5304522510)				$ 70.88
15	5304511738		Light Bulb, Led			Immediately	$ 24.26
16	241559802		Socket		Appelez-nous	-
17	5304503170		Control Box				$ 25.94
18	240360801		Knob, Temp Control				$ 43.95
21	241537103		Control-temperature			Immediately	$ 72.31
23	241705102		Timer-defrost			Immediately	$ 113.51
24	240360908		Shelf, Sliding, Wire			Immediately	$ 94.98
25	240364787		Cover-crisper Pan			Immediately	$ 120.98
26	240337103		Pan-crisper, Clear, (2), No Graphics			Immediately	$ 148.35
47	240350608		Insert-pan Cover, 23.82" X 15.50", Glass			Immediately	$ 45.50
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
11A	240358008		Shelf, Freezer				$ 91.80
22A	240468202		Tube, Sensor Sleeve, 31 Inch, Plastic, White				$ 9.10
25B	241613501		Control-humidity, Rh			Immediately	$ 12.05
25C	241613502		Control-humidity, Lh				$ 47.78
NIA	5304455649		Screw-timer Mtg, Pan Hd, 6-20 X 0.438   (Replaces: 5303001259)				$ 17.01
NIA	240568606		Seal   (Replaces: 240568607)				$ 12.76
NIB	241705801		Spacer, Shelf/wtr Tube				$ 7.09
