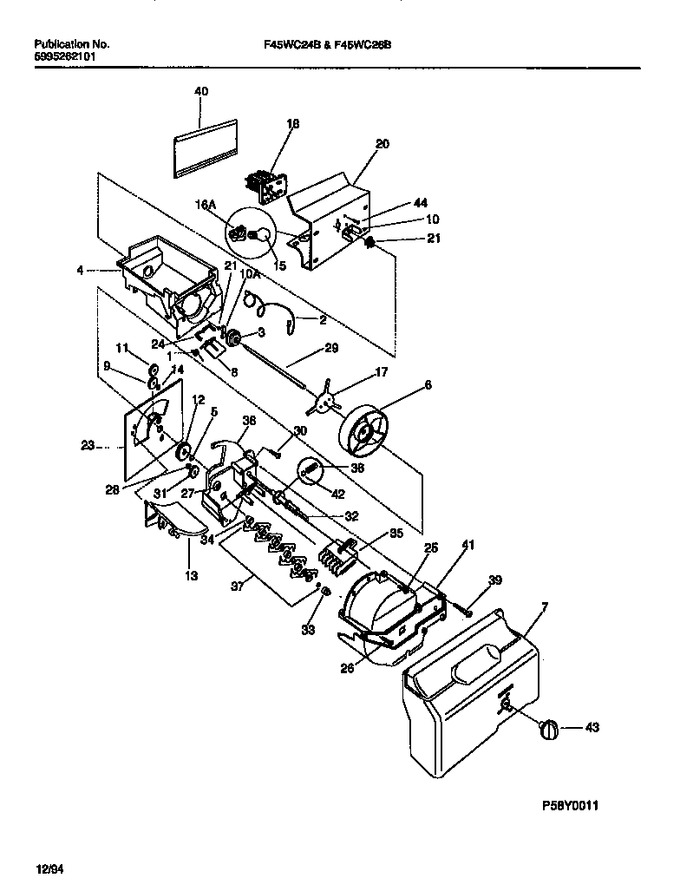

13 - Ice Container & Dispenser Drive


15 - Ice Maker Components & Installatio


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215571300		Spring-ice Cntnr Dr				$ 29.87
2	218232500		Auger-ice		Appelez-nous	-
3	218232300		Cam-drive				$ 32.23
4	218216800		Container-ice		Appelez-nous	-
4	218363200		Label-ice Container (non-illustrated)		Appelez-nous	-
5	215748105		Ring-snap		Appelez-nous	-
6	215752800		Drum-ice Disp		Appelez-nous	-
7	215421601		Front-ice Container		Appelez-nous	-
8	215571200		Door-ice Container				$ 67.36
9	215419700		Gear-auger,18 Teeth		Appelez-nous	-
10	241726501		Bar-drive   (Replaces: 215285000)				$ 58.82
11	215755200		Gear-mtg Plate		Appelez-nous	-
12	215420400		Gear-auger, 26 Teeth				$ 180.92
13	218285200		Gate				$ 40.93
14	215419900		Bearing		Appelez-nous	-
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	215754800		Bar-breaker				$ 85.68
18	218329200		Harness, Wiring, Auger Motor (non-illustrated)		Appelez-nous	-
18	5304462594		Motor Auger   (Replaces: 215285400)				$ 314.22
20	215285301		Cover-motor		Appelez-nous	-
21	241726501		Nut-drive   (Replaces: 215285100)				$ 58.82
23	215755300		Bracket-gear Mtg		Appelez-nous	-
23	215755800		Stud (non-illustrated)		Appelez-nous	-
23	215755700		Ring-retainer (non-illustrated)		Appelez-nous	-
24	215571400		Bracket-ice Cntnr Dr				$ 35.33
25	215421400		Screw,hilo ,10 X 3/4				$ 8.19
26	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
27	215748400		Bearing-auger		Appelez-nous	-
28	215755100		Bushing-crusher		Appelez-nous	-
29	215757501		Shaft-drive,auger		Appelez-nous	-
30	215757300		Screw,6-32 X 1/2		Appelez-nous	-
31	215757400		Gear-crusher, 22 Teeth		Appelez-nous	-
32	215747501		Shaft-selector		Appelez-nous	-
32	215748102		Ring-snap, (non-illustrated)		Appelez-nous	-
33	215748200		Bearing-mtg Plate		Appelez-nous	-
34	215748300		Bearing		Appelez-nous	-
35	215753500		Fixed Blade Assy				$ 267.28
36	215756700		Spring		Appelez-nous	-
37	215253600		Shaft-crusher,(non-illustrated)		Appelez-nous	-
37	215748104		Ring-snap,(non-illustrated)		Appelez-nous	-
37	215756100		Crusher Shaft Assy		Appelez-nous	-
37	215756200		Spacer, (2) (non-illustrated)		Appelez-nous	-
37	215753400		Blade-crusher, No. 1, (non-illustrated)		Appelez-nous	-
37	215753300		Blade-crusher, No. 2, (non-illustrated)		Appelez-nous	-
37	215753200		Blade-crusher,no. 3,(non-illustrated)		Appelez-nous	-
37	215839400		Spacer,(4),(non-illustrated)		Appelez-nous	-
37	215753100		Blade-crusher, No. 4,(non-illustrated)		Appelez-nous	-
37	215753000		Blade-crusher, No. 5,(non-illustrated)		Appelez-nous	-
38	218270100		Plate-crusher Mtg				$ 61.91
39	215757000		Screw,10- X 2		Appelez-nous	-
40	215363000		Cover-mtr Mtg Brkt		Appelez-nous	-
41	218270200		Cover-crusher Assy		Appelez-nous	-
42	215756000		Ball		Appelez-nous	-
43	215752900		Spring-knob,(non-illustrated)				$ 2.67
43	215755002		Knob-ice Selection, W/spring		Appelez-nous	-
44	218359200		Screw,pan Head, 8-32 X .25		Appelez-nous	-
*93771	215781700		Clip-tube		Appelez-nous	-
10A	218232800		Bar-drive				$ 62.61
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
