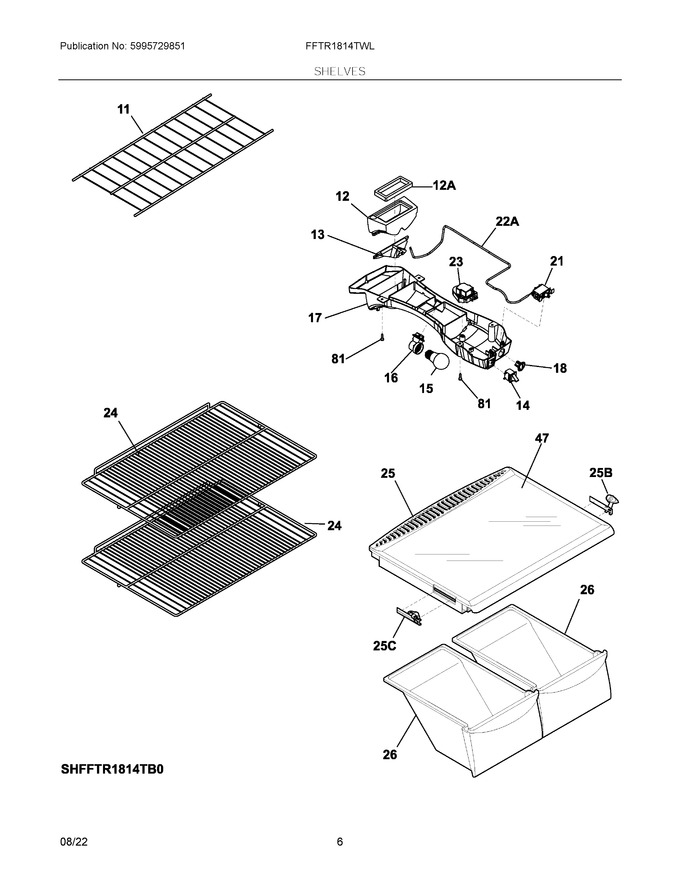

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| 12 | 241542001 | Diffuser, Air, Top |
|
Immediately | $ 74.42 | ||||
| 13 | 240362601 | Diffuser, Air, Bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 5304511738 | Light Bulb, Led |
|
Immediately | $ 24.26 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 5304531675 | Control, Speed, Digital |
|
- | |||||
| 18 | 240360801 | Knob, Temp Control |
|
$ 43.95 | |||||
| 21 | 241537103 | Control-temperature |
|
Immediately | $ 72.31 | ||||
| 23 | 241705102 | Timer-defrost |
|
Immediately | $ 113.51 | ||||
| 24 | 240360908 | Shelf, Sliding, Wire |
|
Immediately | $ 94.98 | ||||
| 25 | 240364787 | Cover-crisper Pan |
|
Immediately | $ 120.98 | ||||
| 26 | 240337103 | Pan-crisper, Clear, (2), No Graphics |
|
Immediately | $ 148.35 | ||||
| 47 | 240350608 | Insert-pan Cover, 23.82" X 15.50", Glass |
|
Immediately | $ 45.50 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 11A | 240358008 | Shelf, Freezer |
|
$ 91.80 | |||||
| 22A | 240468202 | Tube, Sensor Sleeve, 31 Inch, Plastic, White |
|
$ 9.10 | |||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 47.78 | |||||
| NIA | 240568606 | Seal (Replaces: 240568607) |
|
$ 12.76 | |||||
| NIA | 5304455649 | Screw-timer Mtg, Pan Hd, 6-20 X 0.438 (Replaces: 5303001259) |
|
$ 17.01 | |||||
| NIB | 241705801 | Spacer, Shelf/wtr Tube |
|
$ 7.09 |
