SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Upper Oven


04 - Lower Oven

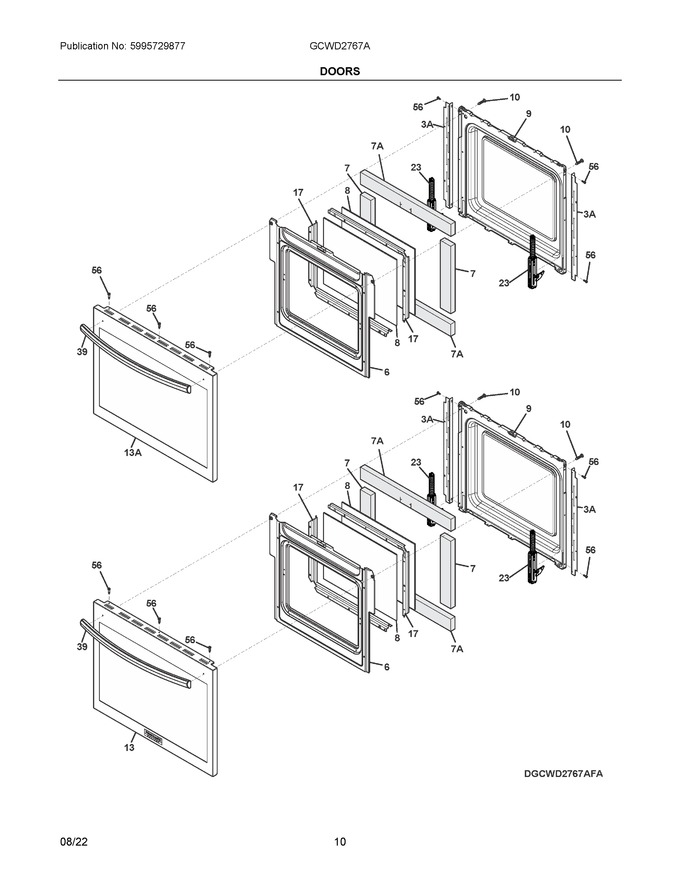

05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085803		Glass, Door, Inner, (2), Eko			Immediately	$ 108.45
9	139002917		Liner, Oven Door				$ 113.81
10	5304414648		Screw, Handle Mtg.				$ 14.18
13	5304525831		Door Assembly, Outer, Glass/steel, Stainless, W/badge				$ 200.45
17	318264735		Spacer, Glass, (2)				$ 64.49
23	808930405		Hinge, Door, Blue, Soft Close				$ 100.36
39	5304525823		Handle, Door, Stainless				$ 96.35
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
13A	5304525832		Door Assembly, Outer, Glass/steel, Stainless			Immediately	$ 195.77
3A	5304525458		Trim, Door, Black, Side				$ 39.94
56A	5303311306		Screw, 8-32 X 0.375		Appelez-nous	-
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 14.18
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
