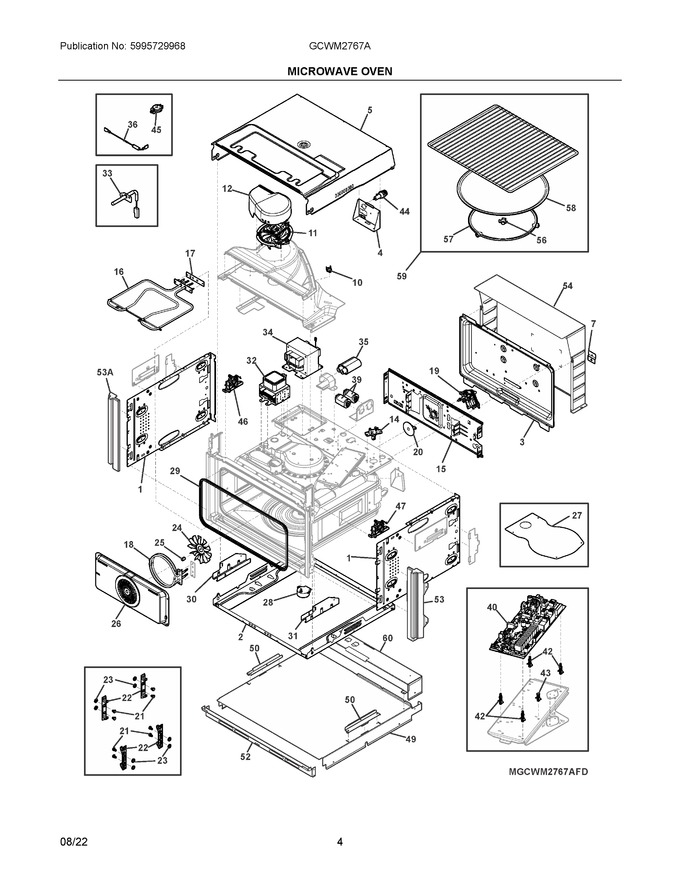

03 - Microwave Oven


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555010801		Panel, Side		Appelez-nous	-
2	A19743502		Base, Plate, Bottom		Appelez-nous	-
3	A18591502		Panel, Oven Back		Appelez-nous	-
4	A13873001		Support, Connection Box		Appelez-nous	-
5	A05908717		Housing, Top, Complete				$ 199.09
7	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
10	A01802605		Thermostat, Safety, 145 Deg, Yellow, Klixon				$ 27.60
11	A18653201		Cooling Fan, Assembly, 22w, 120v			Immediately	$ 167.35
12	A13630003		Duct, Magnetron				$ 122.09
14	A15722702		Lamp Assembly, G9, 40w, 120v			Immediately	$ 51.87
15	A00843201		Mounting Plate, Back		Appelez-nous	-
16	A08934211		Element, Heating, Upper, Grill				$ 112.24
17	A13375801		Bracket, Heating Element				$ 11.15
18	A08933932		Element, Heating, Convection Fan		Appelez-nous	-
19	555027103		Motor, Convection Fan			Immediately	$ 181.60
20	555033100		Shield, Convection Fan, Choke				$ 23.51
21	808373901		Pin, Support, Wire Shelf			Immediately	$ 10.16
22	A18262002		Support, Wire Shelf				$ 96.66
23	A19949501		Washer			Immediately	$ 8.50
24	555023101		Fan Blade, Convection				$ 29.58
25	561231207		Nut, Fan Blade			Immediately	$ 18.35
26	A07296807		Cover, Convection Fan, Back		Appelez-nous	-
27	A16295701		Cover, Mica				$ 30.54
28	A13805506		Motor, Turntable				$ 114.08
29	807177101		Gasket, Door, Microwave		Appelez-nous	-
30	387886701		Support, Lh Hinge				$ 25.02
31	387886702		Support, Rh Hinge				$ 25.02
32	555030400		Magnetron			Immediately	$ 223.61
33	555044200		Sensor, Pt500				$ 78.42
34	555030502		Transformer, 60hz, 120v			Immediately	$ 355.37
35	315795903		Capacitor, 60hz			Immediately	$ 113.91
36	555042802		Diode, High Voltage			Immediately	$ 32.20
39	A20022801		Filter, Voltage, Rfi				$ 126.33
40	A18493801		Pc Board, Power, Ovc-p			Immediately	$ 290.48
42	330647300		Clip, Pc Board, (4)		Appelez-nous	-
43	330647301		Clip, Pc Board, Flat Top		Appelez-nous	-
44	318647300		Fuse Holder, Assembly, 20a, W/fuse			Immediately	$ 217.73
45	387963800		Holder, Cable, Round		Appelez-nous	-
46	A23242801		Interlock, Assembly, Lh Safety, W/switch   (Replaces: A16919201)			Immediately	$ 89.73
47	A23243301		Interlock, Assembly, Rh Safety, W/switch   (Replaces: A16919301)			Immediately	$ 103.54
49	5304531545		Plate, Support		Appelez-nous	-
50	5304531556		Support, Side		Appelez-nous	-
52	5304531539		Trim, Vent, Black		Appelez-nous	-
53	5304531546		Spacer, Side, Rh		Appelez-nous	-
54	5304531550		Cover, Cable Guard		Appelez-nous	-
56	A15654501		Coupler, Turntable			Immediately	$ 18.25
57	A13881201		Roller Assembly, Turntable, Spider				$ 103.49
58	A13804901		Turntable, Glass, Round				$ 110.21
59	A18994801		Accessory Kit, Microwave, W/tray-rack			Immediately	$ 139.01
60	5304531540		Cover, Back		Appelez-nous	-
53A	5304531547		Spacer, Side, Lh		Appelez-nous	-
NI	A17118016		Harness, Wiring, Ui-macs/x1, Ui Board, To Sidekick				$ 135.75
NI	A17118014		Harness, Wiring, Ovc-p/j3, Pt500, Power Board, To Sensor			Immediately	$ 135.75
NI	5029617300		Clip Kit, Power Board, (11 Clip Pack)		Appelez-nous	-
NI	405522329		Screw Kit, T20, 4, 2 X 16, (4 Pack)		Appelez-nous	-
NI	A17118006		Harness, Wiring, Ovc-p/macs1, Power Board, To Panel				$ 139.04
NI	5304531553		Harness, Wiring, Low Voltage		Appelez-nous	-
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	A17118003		Harness, Wiring, Ovc-p/j7, Dfsl/s4, Power Board, To Sensor				$ 139.04
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.32
NI	A17118021		Harness, Wiring, Ovc-p/maces2, Power Board, To Ui Board				$ 138.93
NI	387854510		Screw, Din 7981, 4, 2 X 9, 5, (9)		Appelez-nous	-
NI	349475501		Screw, Ab Pan T20, N6 X 1/4, (11)		Appelez-nous	-
NIA	561045004		Nut, Heat Element, Upper		Appelez-nous	-
NIA	139022101		Insulation, Noise Dampening		Appelez-nous	-
NIA	555031101		Sensor, Magnetron, Ntc				$ 137.93
