View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

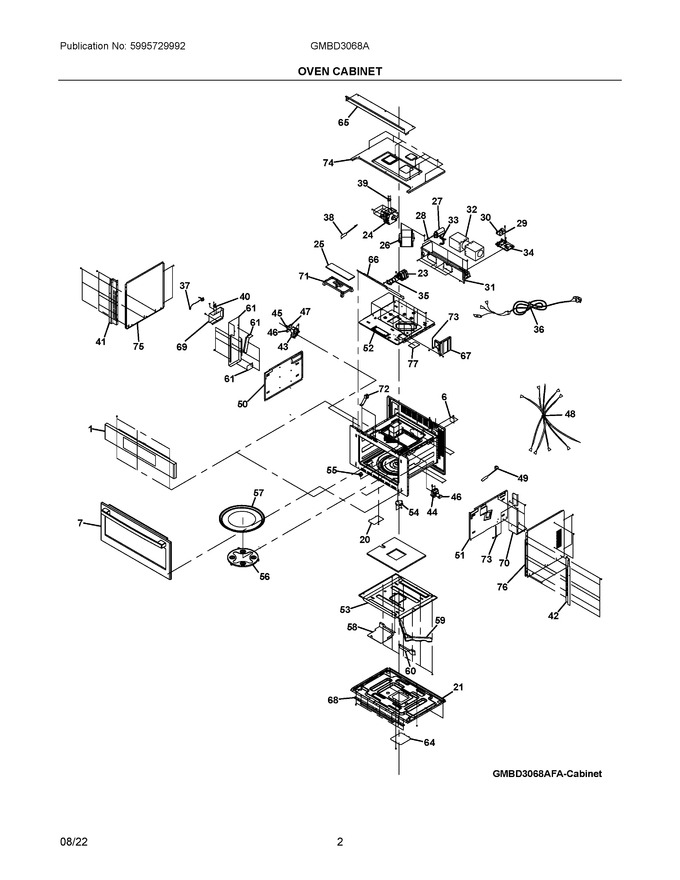

02 - Oven Cabinet
03 - Control Panel & Door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304531640 | Control Panel, Assembly, Stainless, Complete |
|
Immediately | $ 687.23 | ||||
| 6 | 5304515311 | Cover, Light Block |
|
- | |||||
| 7 | 5304531643 | Door Assembly, Complete, Stainless, W/handle |
|
Immediately | $ 696.81 | ||||
| 20 | 5304514227 | Cover, Wave Guide |
|
Immediately | $ 8.68 | ||||
| 21 | 5304514238 | Base Plate |
|
$ 124.03 | |||||
| 23 | 5304514247 | Cover, Lamp |
|
$ 12.05 | |||||
| 24 | 5304514250 | Magnetron |
|
Immediately | $ 433.94 | ||||
| 25 | 5304527879 | Pc Board, Power |
|
Immediately | $ 390.38 | ||||
| 26 | 5304514249 | Transformer, High Voltage |
|
$ 325.22 | |||||
| 27 | 5304518895 | Capacitor, High Voltage |
|
$ 89.06 | |||||
| 28 | 5304513459 | Diode, High Voltage |
|
Immediately | $ 30.37 | ||||
| 29 | 5304525109 | Filter, Noise, Electronic |
|
$ 86.00 | |||||
| 30 | 5304514258 | Fuse |
|
Immediately | $ 13.83 | ||||
| 31 | 5304514254 | Bracket, Exhaust Fan |
|
- | |||||
| 32 | 5304514255 | Exhaust Fan, Assembly, W/motor |
|
$ 221.55 | |||||
| 33 | 5304513482 | Holder, Hv Capacitor |
|
- | |||||
| 34 | 5304515326 | Holder, Noise Filter |
|
$ 18.79 | |||||
| 35 | 5304527876 | Bulb, Lamp |
|
- | |||||
| 36 | 5304518897 | Power Cord, Elect Service |
|
- | |||||
| 37 | 5304509652 | Sensor, Humidity |
|
$ 305.46 | |||||
| 38 | 5304514252 | Fuse Assembly, High Voltage |
|
$ 32.58 | |||||
| 39 | 5304515313 | Thermostat, 160/95 |
|
Immediately | $ 31.66 | ||||
| 40 | 5304518898 | Thermostat, 90/80 |
|
$ 19.71 | |||||
| 41 | 5304515315 | Bracket, Trim, Lh |
|
Immediately | $ 41.93 | ||||
| 42 | 5304515316 | Bracket, Trim, Rh |
|
Immediately | $ 47.71 | ||||
| 43 | 5304515317 | Latch Board, Lh |
|
Immediately | $ 31.08 | ||||
| 44 | 5304515318 | Latch Board, Rh |
|
Immediately | $ 31.79 | ||||
| 45 | 5304514265 | Rod, Release |
|
Immediately | $ 5.21 | ||||
| 46 | 5304514264 | Switch, Micro |
|
Immediately | $ 36.05 | ||||
| 47 | 5304514266 | Switch, Micro, Monitor |
|
Immediately | $ 25.25 | ||||
| 48 | 5304518901 | Harness, Wiring, Main |
|
$ 143.14 | |||||
| 49 | 5304527878 | Harness, Wiring, Motor |
|
$ 16.30 | |||||
| 50 | 5304518902 | Shield Plate, Heat, Lh |
|
- | |||||
| 51 | 5304518903 | Shield Plate, Heat, Rh |
|
- | |||||
| 52 | 5304518900 | Shield Plate, Heat, Top |
|
- | |||||
| 53 | 5304518904 | Shield Plate, Heat, Bottom |
|
- | |||||
| 54 | 5304519018 | Motor, Turntable |
|
- | |||||
| 55 | 5304518906 | Coupler, Turntable |
|
$ 30.41 | |||||
| 56 | 5304518907 | Rotating Ring, Turntable |
|
$ 79.71 | |||||
| 57 | 5304513473 | Tray, Turn Table, Glass |
|
$ 209.21 | |||||
| 58 | 5304514235 | Air Guide, Lower 1 |
|
- | |||||
| 59 | 5304514236 | Air Guide, Lower 2 |
|
- | |||||
| 60 | 5304514237 | Air Guide, Lower 3 |
|
- | |||||
| 61 | 5304515320 | Air Tunnel, Assembly, Lh |
|
- | |||||
| 64 | 5304514239 | Cover, Motor |
|
- | |||||
| 65 | 5304518908 | Bracket, Cabinet, Upper |
|
- | |||||
| 66 | 5304514282 | Wind Guide, Cavity, Upper |
|
- | |||||
| 67 | 5304515324 | Air Guide, Assembly, Lamp |
|
$ 17.72 | |||||
| 68 | 5304515325 | Air Guide, Front |
|
- | |||||
| 69 | 5304514269 | Air Duct, Lh |
|
- | |||||
| 70 | 5304515323 | Air Guide, Assembly, Rh |
|
- | |||||
| 71 | 5304518909 | Bracket, Control Board, Main |
|
$ 39.29 | |||||
| 72 | 5304514242 | Holder, Wire |
|
- | |||||
| 73 | 5304531646 | Support, Wiring |
|
- | |||||
| 74 | 5304514259 | Outer Case, Upper |
|
- | |||||
| 75 | 5304514272 | Outer Case, Lh |
|
- | |||||
| 76 | 5304514277 | Outer Case, Rh |
|
- | |||||
| 77 | 5304514241 | Glass, Lamp |
|
$ 14.46 | |||||
| NIA | 5304515321 | Bracket, Guide Plate |
|
- | |||||
| NIB | 5304515322 | Bracket, Guide Plate |
|
$ 10.63 |
