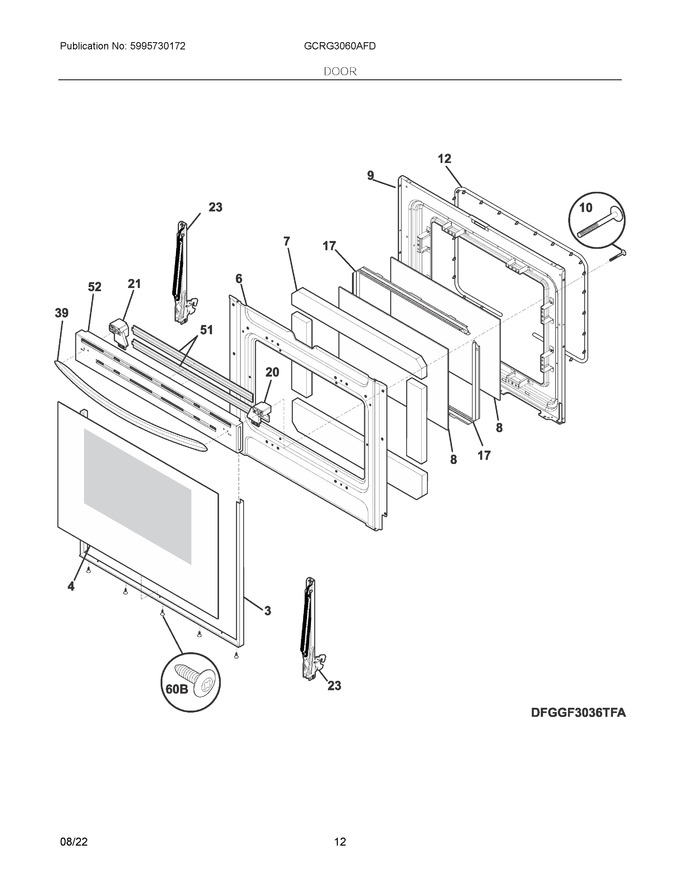

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5303935378 | Trim Kit-door, 3 Sided, Black, W/tape |
|
Immediately | $ 63.08 | ||||
| 4 | 316355501 | Glass Assembly, Door, Black, Outer, W/foil |
|
Immediately | $ 256.88 | ||||
| 6 | 316402316 | Shield, Wool |
|
Immediately | $ 88.72 | ||||
| 7 | 316403900 | Insulation, Oven Door |
|
Immediately | $ 72.30 | ||||
| 8 | 5304503232 | Glass, Oven Door, Heat Barrier, Inner, Hrc2 (Replaces: 316117502) |
|
$ 116.95 | |||||
| 9 | 316423814 | Liner, Oven Door |
|
$ 162.30 | |||||
| 10 | 5304507924 | Screw, Handle Mtg, 10-24 X 2.188, (2) (Replaces: 316513301) |
|
Immediately | $ 16.48 | ||||
| 12 | 5304498835 | Seal, Oven Door |
|
Immediately | $ 88.74 | ||||
| 17 | 5304504811 | Spacer, Glass |
|
Immediately | $ 25.02 | ||||
| 20 | 316353004 | Spacer, Door, Rh |
|
$ 27.30 | |||||
| 23 | 5304521043 | Hinge, Door, Orange, Dual Spring |
|
Immediately | $ 84.93 | ||||
| 39 | 316554010 | Handle, Door/drawer, Stainless |
|
Immediately | $ 168.44 | ||||
| 51 | 316355300 | Insulation, Door, Top Cap |
|
$ 7.59 | |||||
| 52 | 5304533994 | Cap, Door Trim, Stainless (Replaces: 5304518010) |
|
$ 37.93 | |||||
| 20A | 316353005 | Spacer, Door, Lh |
|
$ 27.30 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.56 | |||||
| NI | 316519700 | Screw, Cup Pt, 8-18 X 0.375, Chrome (Replaces: 316021108) |
|
$ 10.02 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 5303288572 | Screw-handle Mtg |
|
- | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
