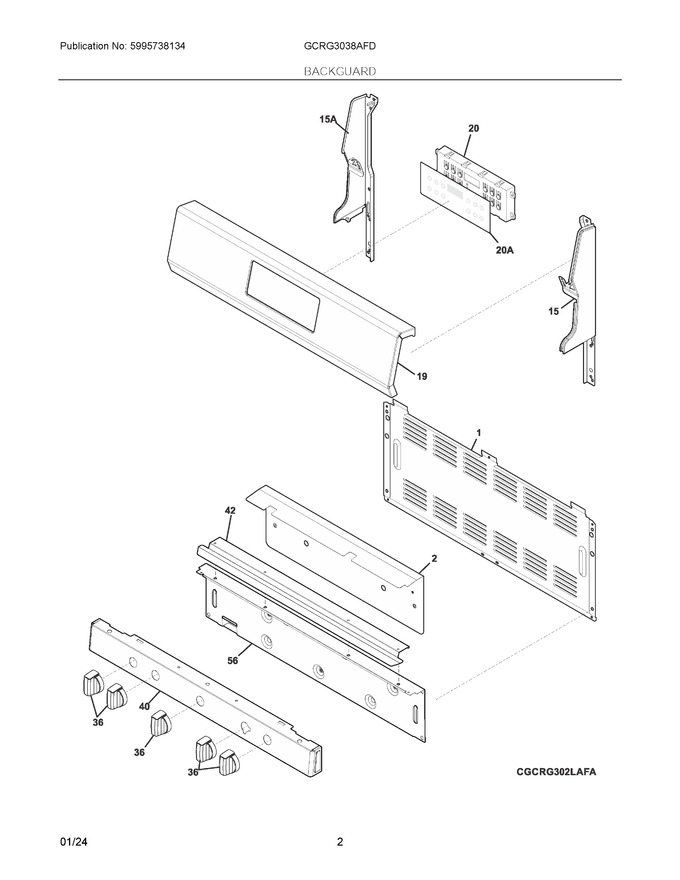

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 57.64
2	5304508980		Shield, Backguard, Inner		Appelez-nous	-
15	5304493644		Cap, End, Black, Rh				$ 66.74
19	5304509890		Panel, Backguard, Stainless				$ 280.20
20	5304533941		Controller, Electronic, Es334isb   (Replaces: 5304521189)				$ 148.14
36	5304509064		Knob, Stainless				$ 66.74
40	316606135		Panel-manifold, Stainless   (Replaces: 316606126)				$ 132.36
42	808754601		Deflector, Backguard				$ 77.97
56	316230708		Shield, Backguard, Inner				$ 61.66
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 66.74
20A	316419388		Overlay, Eoc, Black, Es335				$ 47.78
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
