View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub
05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

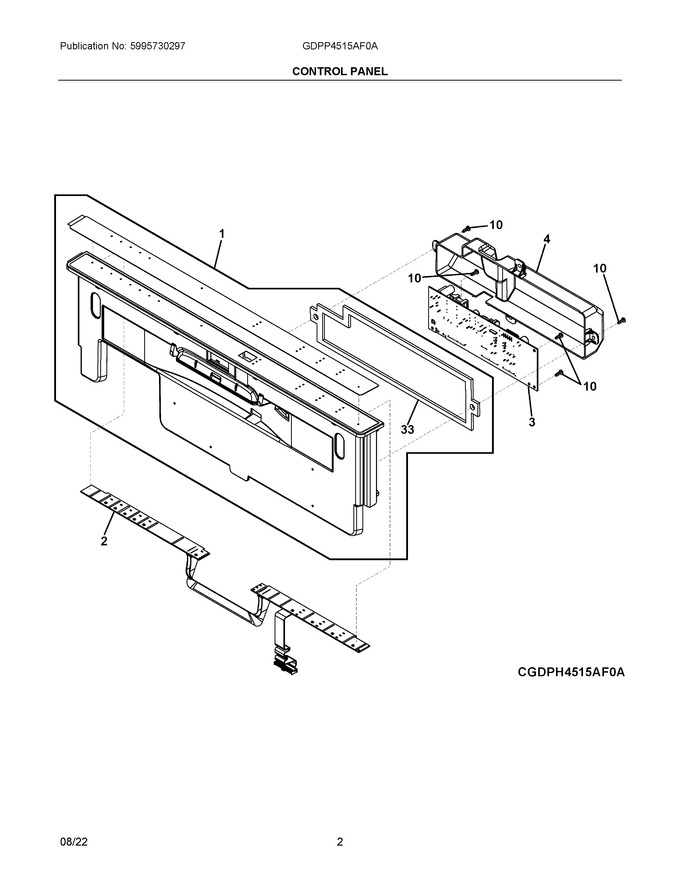

| 1 | 5304533992 | Console Assembly, W/overlay (Replaces: 5304532797) |
|
$ 50.03 | |||||
| 2 | 5304532245 | Switch Assembly, Pcb Tactile, W/harness |
|
Immediately | $ 85.30 | ||||
| 3 | 140263281051 | Control Board, Assembly (Replaces: 5304532240) |
|
$ 116.11 | |||||
| 4 | 5304517614 | Cover, Control |
|
$ 20.24 | |||||
| 10 | 154294701 | Screw, #7 Plas .375, (6), Disp. Assy. |
|
$ 9.22 | |||||
| 33 | 154478901 | Gasket, Cover |
|
$ 61.66 | |||||
| NI | 5304532261 | Harness Assembly, Main, And High Limit, W/latch, Thermostat |
|
$ 142.47 |
