SELECT A DIAGRAM

01 - Cover Sheet


02 - Doors


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram

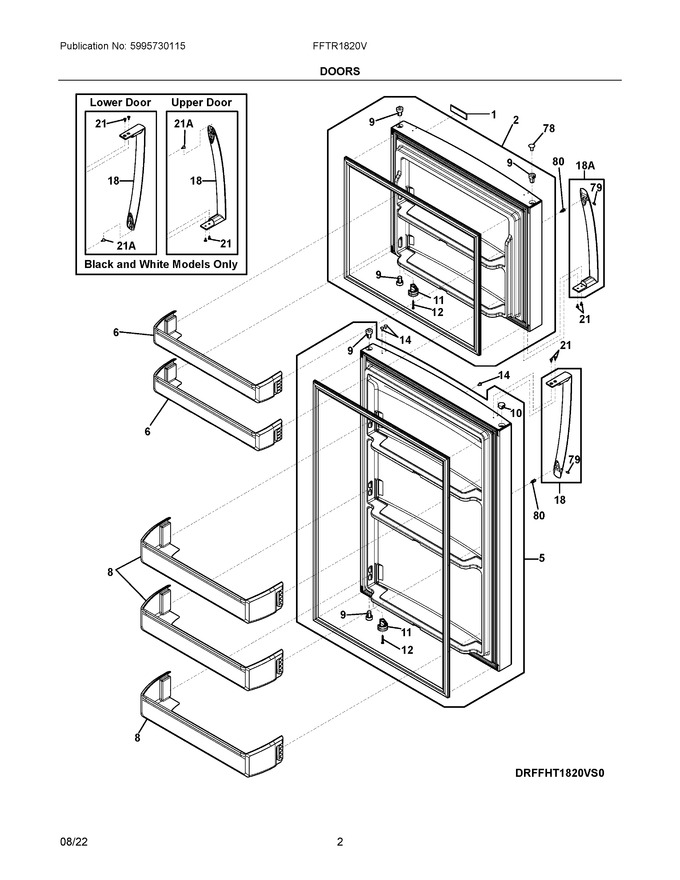

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 47.03
2	5304530638		Door Assembly, Freezer, Stainless, W/gasket		Appelez-nous	-
3	5304530605		Gasket, Door, Gray, Fresh Food		Appelez-nous	-
4	5304530606		Gasket, Door, Gray, Freezer		Appelez-nous	-
5	5304530632		Door Assembly, Fresh Food, Stainless, W/gasket		Appelez-nous	-
6	5304530574		Bin, Door, White, Freezer		Appelez-nous	-
8	5304530573		Bin, Door, 6", White, Fresh Food		Appelez-nous	-
9	5304522194		Bearing, Hinge, Gray			Immediately	$ 2.28
10	5304522187		Cover, Hinge Bearing, Gray			Immediately	$ 7.44
11	5304522238		Hook, Door Closer, Gray			Immediately	$ 8.34
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38
14	240494007		Button, Plug, Gray			Immediately	$ 15.92
18	5304511368		Handle, Door, Stainless, Ref Rhs, W/set Screw				$ 219.17
21	5304453707		Screw, Plask, #8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
78	240381307		Button, Plug, Gray, Hinge Brg Hole, (2)			Immediately	$ 16.69
79	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
18A	5304511369		Handle, Door, Stainless, Frz Rhs, W/set Screw				$ 251.78
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 30.20
NIA	241601001		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
