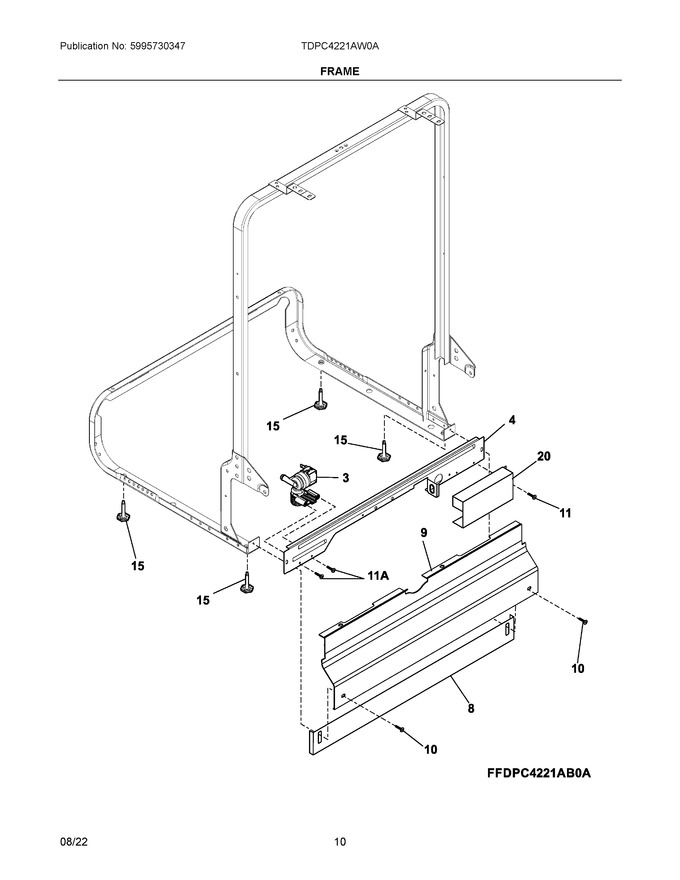

06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304525044 | Valve, Water Inlet |
|
Immediately | $ 48.44 | ||||
| 4 | 5304508587 | Brace, Front Frame |
|
$ 28.92 | |||||
| 8 | 154745501 | Toeplate, Adjustable, White |
|
Immediately | $ 21.27 | ||||
| 9 | 5304501482 | Kickplate Assy, Pvc, White, W/label |
|
$ 51.08 | |||||
| 10 | 154371301 | Screw, Phillips Head, White |
|
Immediately | $ 12.76 | ||||
| 11 | 134154100 | Screw, #10-32 X 3/8 (Replaces: 154200701) |
|
$ 13.46 | |||||
| 15 | 5304506540 | Leg, Leveling, 1/4-20 |
|
Immediately | $ 10.85 | ||||
| 20 | 154758501 | Cover, Junction Box, W/label |
|
$ 20.84 | |||||
| 11A | 808326801 | Screw, Hex Hd, 8-18 X .4, W/washer (Replaces: 154825401) |
|
$ 2.84 | |||||
| NI | 808690701 | Screw, Plask1, #10-10 X 9/16, (2) |
|
- | |||||
| NI | 154041001 | Screw, Plask #1, 10-10 X 9/16 |
|
- | |||||
| NIA | 154611101 | Clamp, Hose, 1.29" Open, Worm Gear, (2) (Replaces: 154106801) |
|
$ 12.05 | |||||
| NIA | 5300807373 | Washer |
|
- |
