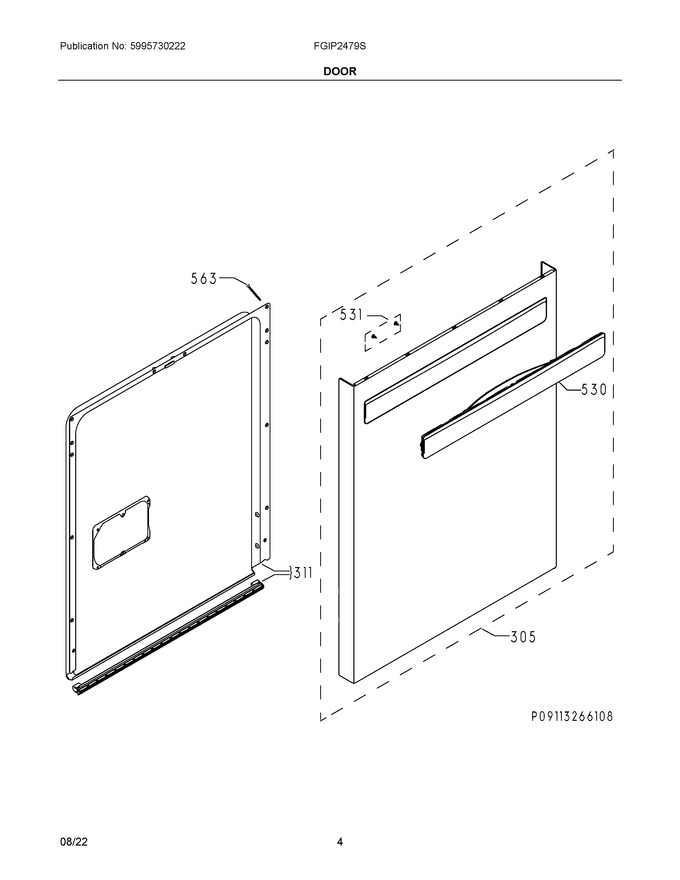

03 - Door
04 - Electrical Parts
05 - Wash System
06 - Tub & Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 305 | A20400502 | Door Assembly, Outer, Stainless, W/handle |
|
$ 193.79 | |||||
| 311 | A00010702 | Liner, Door |
|
$ 397.30 | |||||
| 530 | A18193006 | Handle, Door, Gray |
|
$ 135.04 | |||||
| 531 | 5304533456 | Screw, Kickplate, 3-5 X 9, (2) (Replaces: 405530674) |
|
$ 3.50 | |||||
| 563 | 405538278 | Screw Kit, Door, 3.5x13/19/40, (6/3/5 Pcs), Complete |
|
$ 16.34 |
