01 - Base & Drive (rev. A-d)

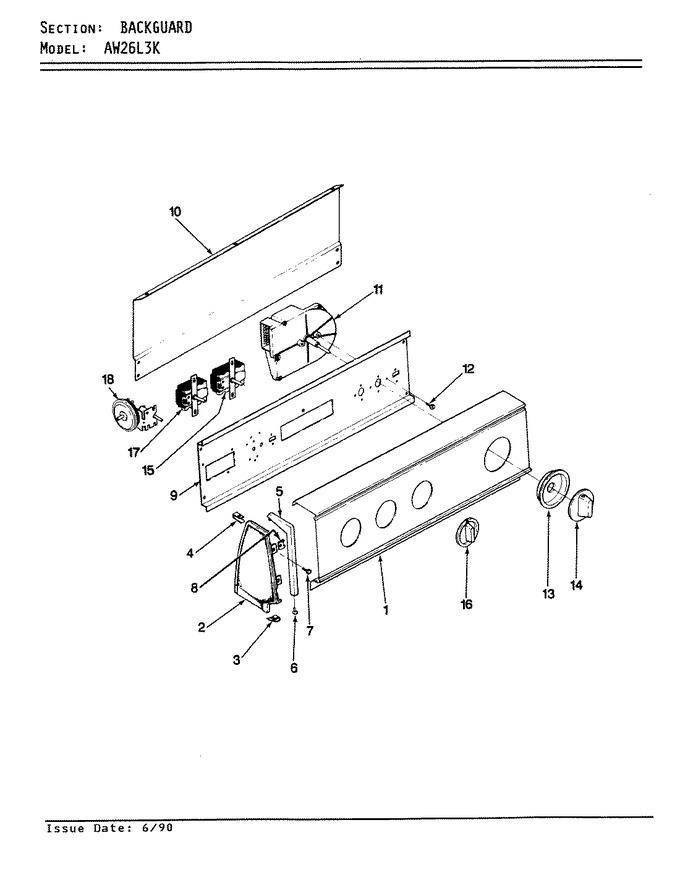

02 - Control Panel (rev. A-d)
03 - Transmission (rev. A-d)
04 - Tub (rev. A-d)
05 - Water Carrying & Pump Assy. (rev. A-d)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 1 | 25-7793 | Screw |
|
- | |||||
| 1 | 35-2554 | Panel, Control |
|
- | |||||
| 2 | 35-2488 | Cap, End (lt) | A |
|
- | ||||
| 2 | 53-0265 | Lh Endcap |
|
- | |||||
| 2 | 53-0264 | Rh Endcap |
|
- | |||||
| 2 | 35-2487 | Cap, End (rt) | A |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | A |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 3 | 25-7697 | Screw | A |
|
- | ||||
| 3 | 25-7697 | Screw |
|
- | |||||
| 3 | 34-9487 | Plate, Reinforcement |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) | A |
|
Immediately | $ 6.90 | |||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap |
|
- | |||||
| 5 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 5 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 6 | 25-7760 | Screw |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 8 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 8 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | A |
|
- | ||||
| 9 | 53-1676 | Shield, Control | A |
|
- | ||||
| 9 | 53-0365 | Control Shield |
|
- | |||||
| 10 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 10 | 35-2688 | Shield, Control Panel (rear) | A |
|
- | ||||
| 10 | 53-0268 | Rear Shield |
|
- | |||||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) |
|
Immediately | $ 7.15 | ||||
| 11 | 35-2325 | Timer |
|
- | |||||
| 12 | 25-0205 | Screw |
|
- | |||||
| 13 | 35-2255 | Skirt & Ring Assy |
|
- | |||||
| 14 | 35-2486 | Timer Knob |
|
- | |||||
| 15 | 35-0114 | Temp Switch |
|
- | |||||
| 15 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 15 | WP90767 | Screw (Replaces: 25-3092) | B |
|
Immediately | $ 7.04 | |||
| 16 | 35-2185 | Knob, Selector (blk) |
|
- | |||||
| 17 | 35-2193 | Switch, Rotary Speed |
|
- | |||||
| 17 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 18 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 18 | WP21001554 | Switch Pressure (Replaces: 35-2801) |
|
$ 143.59 | |||||
| NI | 35-2571 | Manual, Use & Care |
|
- |
