SELECT A DIAGRAM

01 - 33227 Transmission Assy Components


02 - Agitator, Drive Bell & Seal Seat


03 - Back Flow Preventer (change)


04 - Brg Hsg/brake/pulley & Pivot Dome


05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Clothes Guard/washtub/lint Filter & Hub


07 - Door & Out-of-balance Switch


08 - Drive Bell (change)


09 - Front Panel, Cabinet & Base

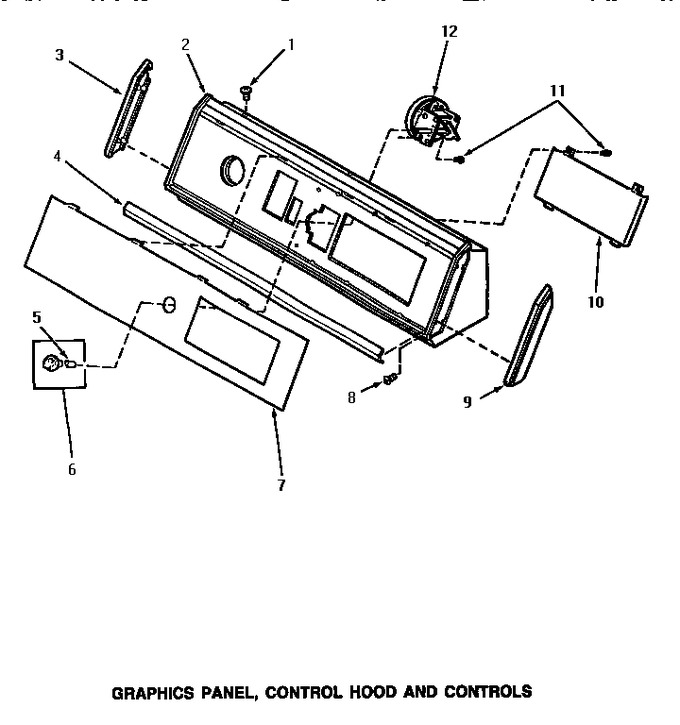

10 - Graphics Panel, Control Hood & Controls


11 - Inlet/fill Hose/back Fl Preventer & Brkt


12 - Leveling Leg (change)


13 - Mixing Valve Assy (eaton Company)


14 - Motor, Mtg Bracket, Belts & Idler Assy


15 - Outer Tub, Cover & Pressure Hose


16 - Pump Assy/brkt/hoses & Siphon Break Kit


17 - Special Tools


18 - Special Tools


19 - Transmission Assy & Balance Ring


20 - Transmission Tube Seal (change)


21 - Wire Harnesses & Power Cord


22 - Wire Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
2	33122		Hood And Mounting Plate				$ 335.11
3	31249		Cap,end-l.h.-chrome		Appelez-nous	-
4	33123R		Trim		Appelez-nous	-
5	10519		Retainer		Appelez-nous	-
6	WP36701W		Assy,knob-rotary-white   (Replaces: 33688)			Immediately	$ 44.31
7	33782		Panel,graphic		Appelez-nous	-
8	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
9	31248		Cap,end-r.h.-chrome		Appelez-nous	-
10	33926		Electronic Control		Appelez-nous	-
11	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
12	31675		Switch,pressure-slide		Appelez-nous	-
	NOTE:		Use For The Removal And Installation Of Drive Bell To Transmission Shaft.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
